Onyx MTB 100/15mm Thru-bolt Helix Front Hub

$192.00

Hub Shell

Clear

Widgets

Clear

Axle

Clear
SKU: 086252-MTB-Helix Categories: ,

Description and Drawings

SKU: 086252-MTB-Helix
SKU: 086252-MTB-Helix

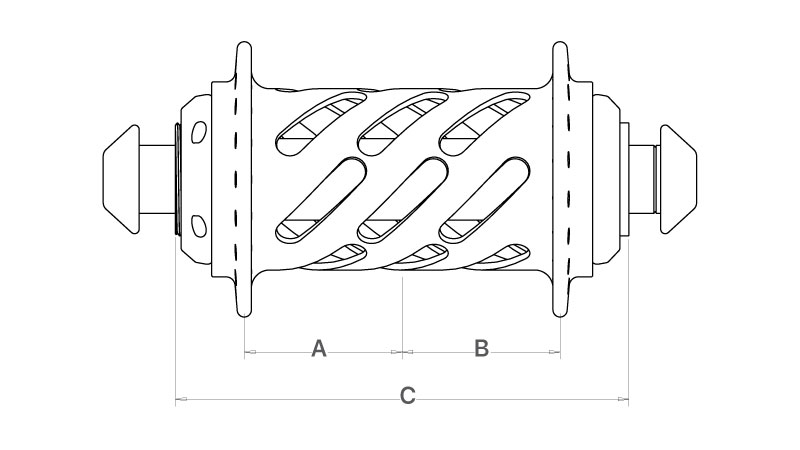

A - Hub Center To Flange Center, Non-Drive Side (mm) 34.8
B - Hub Center To Flange Center, Drive Side (mm) 34.8
C - Axle Width (mm) 100
Spoke Hole Circle Diameter, Drive Side (mm) 50
Spoke Hole Circle Diameter, Non-Drive Side (mm) 50
Spoke Hole Counts Available 28/32/36

Specs

Weight 5.9 oz
Dimensions 9.5 x 4.5 x 4 in
Spoke Tension - Max kgf

Hub Type

Hub Shell Style

Axle Width - mm

Attach Style

Onyx MTB 100/15mm Thru-bolt Helix Front Hub

  • Please enter a value between 100 and 999.
  • This field is for validation purposes and should be left unchanged.

Although we do our best to make sure these spoke length values are correct, it is always best to measure the hub and verify these values for yourself!  Onyx Racing takes no responsibility for errors in these calculations.

Spoke length results for an ERD of 0 mm
28 Spoke HolesDrive Side
(mm)
Non-Drive Side
(mm)
1-Cross 00
2-Cross 00
3-Cross 00
4-Cross 00
32 Spoke HolesDrive Side
(mm)
Non-Drive Side
(mm)
1-Cross 00
2-Cross 00
3-Cross 00
4-Cross 00
36 Spoke HolesDrive Side
(mm)
Non-Drive Side
(mm)
1-Cross 00
2-Cross 00
3-Cross 00
4-Cross 00
