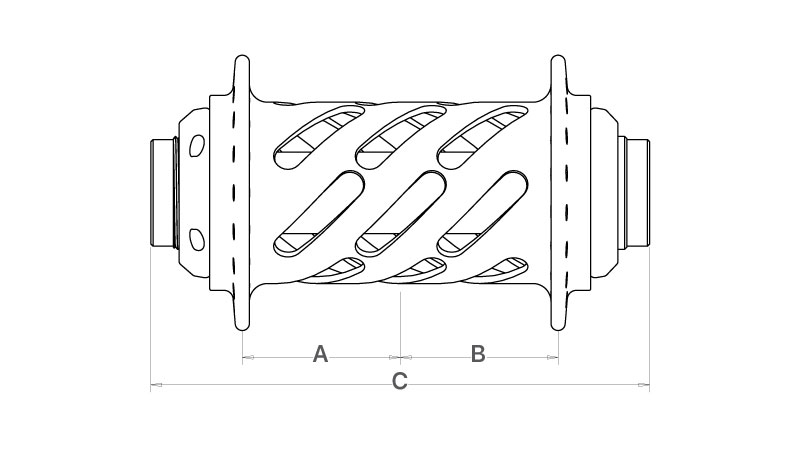

Description and Drawings

A - Hub Center To Flange Center, Non-Drive Side (mm)	34.8
B - Hub Center To Flange Center, Drive Side (mm)	34.8
C - Axle Width (mm)	110
Spoke Hole Circle Diameter, Drive Side (mm)	50
Spoke Hole Circle Diameter, Non-Drive Side (mm)	50
Spoke Hole Counts Available	28/32/36

Specs

Weight	6.2 oz
Dimensions	9.5 x 4.5 x 4 in
Hub Type	Front
Axle Width - mm	110
Attach Style	Thru-bolt
Hub Shell Style	Helix Cut-out
Spoke Tension - Max kgf	120

Onyx MTB 110/15mm Thru-bolt Helix Front Hub
