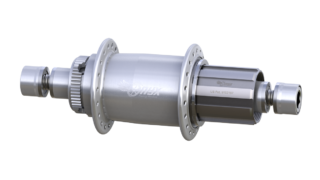

Onyx MTB CL HG-135/10mm Bolt-on Rear Hub

All images shown are for illustration purposes only. Actual product may vary due to product enhancements.

SKU: 085910 Categories: ,

Description and Drawings

SKU: 085910
SKU: 085910
A - Hub Center To Flange Center, Non-Drive Side (mm) 33.9
B - Hub Center To Flange Center, Drive Side (mm) 19.92
C - Axle Width (mm) 135
Spoke Hole Circle Diameter, Drive Side (mm) 50
Spoke Hole Circle Diameter, Non-Drive Side (mm) 50
Spoke Hole Counts Available 24/28/32/36

Specs

Weight 18.7 oz / 530 g
Dimensions - Approximate for Shipping 9.5 × 4.5 × 4 in
Hub Type

Axle Width - mm

Axle Diameter - mm

Spoke Count

, , ,

Attach Style

Hub Shell Style

Bolts

Disc Brake Rotor Mount

Driver Style

Spoke Tension - Max kgf

Product Line

Onyx MTB CL HG-135/10mm Bolt-on Rear Hub

  • Please enter a number from 100 to 999.
  • This field is for validation purposes and should be left unchanged.

Although we do our best to make sure these spoke length values are correct, it is always best to measure the hub and verify these values for yourself!  Onyx Racing takes no responsibility for errors in these calculations.

Spoke length results for an ERD of 0 mm
24 Spoke HolesNon-Drive Side
(mm)		Drive Side
(mm)
1-Cross 00
2-Cross 00
3-Cross 00
4-Cross 00
28 Spoke HolesNon-Drive Side
(mm)		Drive Side
(mm)
1-Cross 00
2-Cross 00
3-Cross 00
4-Cross 00
32 Spoke HolesNon-Drive Side
(mm)		Drive Side
(mm)
1-Cross 00
2-Cross 00
3-Cross 00
4-Cross 00
36 Spoke HolesNon-Drive Side
(mm)		Drive Side
(mm)
1-Cross 00
2-Cross 00
3-Cross 00
4-Cross 00

Parts for Onyx MTB CL HG-135/10mm Bolt-on Rear Hub

View Items in Cart
ImageNameQty PerSKUPrice
Onyx Adaptor, CL Bearing Sleeve 095219
Adaptor, CL Bearing Sleeve1095219$10.00
Onyx Axle, Rear - MTB DJ CL HG or HGSS 135 085918
Axle, Rear - MTB DJ CL HG or HGSS 1351085918$25.00
Onyx Bearing, Ceramic Hybrid - 6804 - 20 x 32 x 7 038297
Bearing, Ceramic Hybrid - 6804 - 20 x 32 x 71038297$32.00
Onyx Bearing, Ceramic Hybrid - 6805 - 25 x 37 x 7 038495
Bearing, Ceramic Hybrid - 6805 - 25 x 37 x 71038495$42.00
Onyx Bearing, Ceramic Hybrid - 6902 - 15 x 28 x 7 038106
Bearing, Ceramic Hybrid - 6902 - 15 x 28 x 71038106$28.00
Onyx Bolt, SOC HD 10mm x 1.5pitch x 40mm, Titanium 084166
Bolt, SOC HD 10mm x 1.5pitch x 40mm, Titanium2084166$20.00
Onyx Bolt, SOC HD 3mm x 8mm, Stainless Steel 042557
Bolt, SOC HD 3mm x 8mm, Stainless Steel1042557$0.25
Onyx Cone, Knurled - 10mm 100384 in Red
Cone, Knurled - 10mm2100384$10.00
Onyx Driver Kit, MTB HG-11SPD - Alloy 096228
Driver Kit, MTB HG-11SPD - Alloy1096228
Onyx Driver Kit, MTB HG-11SPD - Stainless Steel 096217
Driver Kit, MTB HG-11SPD - Stainless Steel1096217
Onyx Endcap, Knurled - Left, CL 10mm Thru 100402 in Red
Endcap, Knurled - Left, CL 10mm Thru1100402$20.00
Onyx Endcap, Knurled - Right, HG 10mm Thru 100400 in Red
Endcap, Knurled - Right, HG 10mm Thru1100400$20.00
Onyx Nut, Locking - 15mm 083579 in Red
Nut, Locking - 15mm1083579$20.00
Onyx O-Ring, 14 mm x 2 mm 086002
O-Ring, 14 mm x 2 mm1086002$0.25
Onyx O-Ring, 23 mm x 1 mm 039513
O-Ring, 23 mm x 1 mm3039513$0.25
Onyx Retaining Ring, Internal 1.25dia - Stainless Steel 085300
Retaining Ring, Internal 1.25dia - Stainless Steel1085300$1.00
Onyx Spacer, Cassette 094694
Spacer, Cassette2094694$5.00
Onyx Sprag Clutch, 432-Z 039661
Sprag Clutch, 432-Z2039661$80.00
