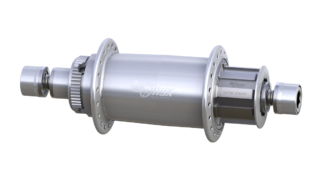

Onyx MTB CL HGSS-135/10mm Bolt-on Rear Hub

From: $485.00

Hub Shell

Widgets, Cones

Freehub HG – optional

COG - Stainless Steel – optional

Description and Drawings

SKU: 090742
SKU: 090742
A - Hub Center To Flange Center, Non-Drive Side (mm) 30.9
B - Hub Center To Flange Center, Drive Side (mm) 34.92
C - Axle Width (mm) 135
Spoke Hole Circle Diameter, Drive Side (mm) 50
Spoke Hole Circle Diameter, Non-Drive Side (mm) 50
Spoke Hole Counts Available 28/32/36

Specs

Weight 18.3 oz
Dimensions 9.5 × 4.5 × 4 in
Hub Type

Axle Width - mm

Attach Style

Hub Shell Style

Bolts

Disc Brake Rotor Mount

Driver Style

Spoke Tension - Max kgf

COG - Stainless Steel

Weight 1 oz
Dimensions 5 × 5 × .5 in

Onyx MTB CL HGSS-135/10mm Bolt-on Rear Hub

  • Please enter a number from 100 to 999.
  • This field is for validation purposes and should be left unchanged.

Although we do our best to make sure these spoke length values are correct, it is always best to measure the hub and verify these values for yourself!  Onyx Racing takes no responsibility for errors in these calculations.

Spoke length results for an ERD of 0 mm
28 Spoke HolesDrive Side
(mm)
Non-Drive Side
(mm)
1-Cross 00
2-Cross 00
3-Cross 00
4-Cross 00
32 Spoke HolesDrive Side
(mm)
Non-Drive Side
(mm)
1-Cross 00
2-Cross 00
3-Cross 00
4-Cross 00
36 Spoke HolesDrive Side
(mm)
Non-Drive Side
(mm)
1-Cross 00
2-Cross 00
3-Cross 00
4-Cross 00

Parts for Onyx MTB CL HGSS-135/10mm Bolt-on Rear Hub

ImageNameQty PerSKUPrice
Onyx Adaptor, CL Bearing Sleeve 095219
Adaptor, CL Bearing Sleeve1095219$10.00
Onyx Axle, Rear - MTB DJ CL HG or HGSS 135 085918
Axle, Rear - MTB DJ CL HG or HGSS 1351085918$25.00
Onyx Bearing, Ceramic Hybrid - 6804 - 20 x 32 x 7 038297
Bearing, Ceramic Hybrid - 6804 - 20 x 32 x 71038297$32.00
Onyx Bearing, Ceramic Hybrid - 6805 - 25 x 37 x 7 038495
Bearing, Ceramic Hybrid - 6805 - 25 x 37 x 71038495$42.00
Onyx Bearing, Ceramic Hybrid - 6902 - 15 x 28 x 7 038106
Bearing, Ceramic Hybrid - 6902 - 15 x 28 x 71038106$28.00
Onyx Bolt, SOC HD 10mm x 1.5pitch x 40mm, Titanium 084166
Bolt, SOC HD 10mm x 1.5pitch x 40mm, Titanium2084166$20.00
Onyx Bolt, SOC HD 3mm x 8mm, Stainless Steel 042557
Bolt, SOC HD 3mm x 8mm, Stainless Steel1042557$0.25
COG, HG and HGSS - Stainless Steel
COG, HG and HGSS - Stainless Steel$50.00
Onyx Cone, Knurled - 10mm 100384 in Red
Cone, Knurled - 10mm2100384$10.00
Onyx Driver Kit, MTB HGSS - Alloy 096229
Driver Kit, MTB HGSS - Alloy1096229$125.00
Onyx Driver Kit, MTB HGSS - Stainless Steel 096218
Driver Kit, MTB HGSS - Stainless Steel1096218$100.00
Onyx Endcap, Knurled - Left, CL 10mm Thru 100402 in Red
Endcap, Knurled - Left, CL 10mm Thru1100402$20.00
Onyx Endcap, Knurled - Right, HG 10mm Thru 100400 in Red
Endcap, Knurled - Right, HG 10mm Thru1100400$20.00
Onyx Nut, Locking - 15mm 083579 in Red
Nut, Locking - 15mm1083579$20.00
Onyx O-Ring, 14 mm x 2 mm 086002
O-Ring, 14 mm x 2 mm1086002$0.25
Onyx O-Ring, 23 mm x 1 mm 039513
O-Ring, 23 mm x 1 mm3039513$0.25
Onyx Retaining Ring, Internal 1.25dia - Stainless Steel 085300
Retaining Ring, Internal 1.25dia - Stainless Steel1085300$1.00
Onyx Ring, Locking 040034 in Red
Ring, Locking1040034$15.00
Onyx Sprag Clutch, 432-Z 039661
Sprag Clutch, 432-Z2039661$80.00
