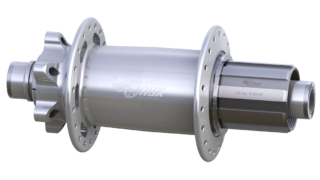

Onyx MTB ISO HG-157/12mm Thru-bolt Rear Hub

$445.00$470.00

Hub Shell

Widgets

Freehub HG

Stainless steel freehub is standard. Aluminum alloy freehub is optional for additional $25.

SKU: 042696 Categories: ,

Description and Drawings

SKU: 042696
SKU: 042696
A - Hub Center To Flange Center, Non-Drive Side (mm) 38.35
B - Hub Center To Flange Center, Drive Side (mm) 27.42
C - Axle Width (mm) 157
Spoke Hole Circle Diameter, Drive Side (mm) 60
Spoke Hole Circle Diameter, Non-Drive Side (mm) 60
Spoke Hole Counts Available 28/32/36

Specs

Weight 17.8 oz
Dimensions 9.5 x 4.5 x 4 in
Hub Type

Axle Width - mm

Attach Style

Hub Shell Style

Disc Brake Rotor Mount

Driver Style

Spoke Tension - Max kgf

Onyx MTB ISO HG-157/12mm Thru-bolt Rear Hub

  • Please enter a value between 100 and 999.
  • This field is for validation purposes and should be left unchanged.

Although we do our best to make sure these spoke length values are correct, it is always best to measure the hub and verify these values for yourself!  Onyx Racing takes no responsibility for errors in these calculations.

Spoke length results for an ERD of 0 mm
28 Spoke HolesDrive Side
(mm)
Non-Drive Side
(mm)
1-Cross 00
2-Cross 00
3-Cross 00
4-Cross 00
32 Spoke HolesDrive Side
(mm)
Non-Drive Side
(mm)
1-Cross 00
2-Cross 00
3-Cross 00
4-Cross 00
36 Spoke HolesDrive Side
(mm)
Non-Drive Side
(mm)
1-Cross 00
2-Cross 00
3-Cross 00
4-Cross 00
