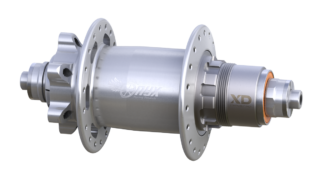

Onyx MTB ISO XD-135/QR Rear Hub

All images shown are for illustration purposes only. Actual product may vary due to product enhancements.

SKU: 083973 Categories: ,

Description and Drawings

SKU: 083973
SKU: 083973
A - Hub Center To Flange Center, Non-Drive Side (mm) 32.7
B - Hub Center To Flange Center, Drive Side (mm) 19.92
C - Axle Width (mm) 135
Spoke Hole Circle Diameter, Drive Side (mm) 60
Spoke Hole Circle Diameter, Non-Drive Side (mm) 60
Spoke Hole Counts Available 24/28/32/36

Specs

Weight 17.0 oz / 482 g
Dimensions - Approximate for Shipping 9.5 × 4.5 × 4 in
Hub Type

Axle Width - mm

Spoke Count

, , ,

Attach Style

Hub Shell Style

Disc Brake Rotor Mount

Driver Style

Spoke Tension - Max kgf

Product Line

Onyx MTB ISO XD-135/QR Rear Hub

  • Please enter a number from 100 to 999.
  • This field is for validation purposes and should be left unchanged.

Although we do our best to make sure these spoke length values are correct, it is always best to measure the hub and verify these values for yourself!  Onyx Racing takes no responsibility for errors in these calculations.

Spoke length results for an ERD of 0 mm
24 Spoke HolesNon-Drive Side
(mm)		Drive Side
(mm)
1-Cross 00
2-Cross 00
3-Cross 00
4-Cross 00
28 Spoke HolesNon-Drive Side
(mm)		Drive Side
(mm)
1-Cross 00
2-Cross 00
3-Cross 00
4-Cross 00
32 Spoke HolesNon-Drive Side
(mm)		Drive Side
(mm)
1-Cross 00
2-Cross 00
3-Cross 00
4-Cross 00
36 Spoke HolesNon-Drive Side
(mm)		Drive Side
(mm)
1-Cross 00
2-Cross 00
3-Cross 00
4-Cross 00

Parts for Onyx MTB ISO XD-135/QR Rear Hub

View Items in Cart
ImageNameQty PerSKUPrice
Onyx Axle, Rear - MTB ISO XD 135 084494
Axle, Rear - MTB ISO XD 1351084494$25.00
Onyx Bearing, Ceramic Hybrid - 6804 - 20 x 32 x 7 038297
Bearing, Ceramic Hybrid - 6804 - 20 x 32 x 72038297$32.00
Onyx Bearing, Ceramic Hybrid - 6805 - 25 x 37 x 7 038495
Bearing, Ceramic Hybrid - 6805 - 25 x 37 x 71038495$42.00
Onyx Bearing, Ceramic Hybrid - 6902 - 15 x 28 x 7 038106
Bearing, Ceramic Hybrid - 6902 - 15 x 28 x 70038106$28.00
Onyx Bolt, SOC HD 3mm x 8mm, Stainless Steel 042557
Bolt, SOC HD 3mm x 8mm, Stainless Steel1042557$0.25
Onyx Driver Kit, MTB XD - Alloy 096230
Driver Kit, MTB XD - Alloy1096230

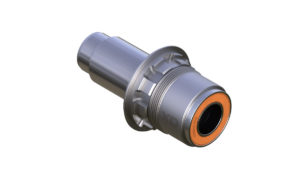

Onyx Driver Kit, MTB XD - Stainless Steel 096219
Driver Kit, MTB XD - Stainless Steel1096219
Onyx Endcap, Knurled - Left, ISO QR 100403 in Red
Endcap, Knurled - Left, ISO QR1100403$20.00
Onyx Endcap, Knurled - Right, XD QR 100405 in Red
Endcap, Knurled - Right, XD QR1100405$20.00
Onyx Nut, Locking, Seal - 17mm 095261 in Red
Nut, Locking, Seal - 17mm1095261$20.00
Onyx O-Ring, 15 mm x 2 mm 083657
O-Ring, 15 mm x 2 mm1083657$0.25
Onyx O-Ring, 18 mm x 1 mm 038382
O-Ring, 18 mm x 1 mm1038382$0.25
Onyx O-Ring, 23 mm x 1 mm 039513
O-Ring, 23 mm x 1 mm3039513$0.25
Onyx O-Ring, Square - 1.1875 od x 0.0625 095272
O-Ring, Square - 1.1875 od x 0.06251095272$0.25
Onyx Retaining Ring, Internal 1.25dia - Stainless Steel 085300
Retaining Ring, Internal 1.25dia - Stainless Steel1085300$1.00
Onyx Sprag Clutch, 432-Z 039661
Sprag Clutch, 432-Z2039661$80.00
