Onyx BMX 100/8mm Bolt-on Front Hub

SKU: 038113 Categories: ,

Description and Drawings

SKU: 038113
SKU: 038113
A - Hub Center To Flange Center, Non-Drive Side (mm) 33.8
B - Hub Center To Flange Center, Drive Side (mm) 33.8
C - Axle Width (mm) 100
Spoke Hole Circle Diameter, Drive Side (mm) 42
Spoke Hole Circle Diameter, Non-Drive Side (mm) 42
Spoke Hole Counts Available 28/36

Specs

Weight 6.0 oz / 170 g
Dimensions - Approximate for Shipping 9.5 × 4.5 × 4 in
Hub Type

Axle Width - mm

Axle Diameter - mm

Spoke Count

,

Attach Style

Hub Shell Style

Hub Shell Flange Type

Bolts

Spoke Tension - Max kgf

Product Line

Onyx BMX 100/8mm Bolt-on Front Hub

Please enter a number from 100 to 999.
This field is for validation purposes and should be left unchanged.
Although we do our best to ensure these values are correct, always verify by measurement. Onyx Racing takes no responsibility for errors.
Results for an ERD of 0 mm
28 Spoke HolesNon-Drive Side (mm)Drive Side (mm)
1-Cross 00
2-Cross 00
3-Cross 00
4-Cross 00
36 Spoke HolesNon-Drive Side (mm)Drive Side (mm)
1-Cross 00
2-Cross 00
3-Cross 00
4-Cross 00

Parts for Onyx BMX 100/8mm Bolt-on Front Hub

ImageNameQty PerSKUPrice

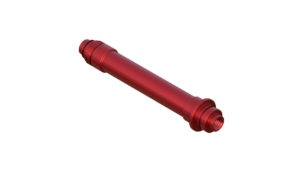

Onyx Axle, Front - BMX 100-8mm Bolt 041083 Onyx Logo in Red
Axle, Front - BMX 100-8mm Bolt1041083-logo$20.00
Onyx Bearing, Ceramic Hybrid - 6902 - 15 x 28 x 7 038106
Bearing, Ceramic Hybrid - 6902 - 15 x 28 x 72038106 Original price was: $28.00.Current price is: $21.00.
Onyx Bolt, SOC HD 3mm x 8mm, Stainless Steel 042557
Bolt, SOC HD 3mm x 8mm, Stainless Steel1042557$0.25
Onyx Bolt, SOC HD 8mm x 35mm, Titanium 084165
Bolt, SOC HD 8mm x 1.25pitch x 35mm, Titanium2084165$15.00
Cone, 8mm
Cone, 8mm2042086$10.00
Onyx Nut, Locking - 15mm 083579 in Red
Nut Kit, Locking - 15mm1091044$20.00
Onyx O-Ring, 10 mm x 1 mm 041591
O-Ring, 10 mm x 1 mm1041591$0.25
Onyx O-Ring, 11.5 mm x 1 mm 040877
O-Ring, 11.5 mm x 1 mm1040877$0.25
Onyx Retaining Ring, Internal 28mm bore 040216
Retaining Ring, Internal 28mm bore2040216$1.00
Onyx Spacer, BMX, Axle - Front 041670 in Red
Spacer, BMX, Axle - Front1041670$20.00
Spacer, Knurled
Spacer, Knurled1083577$10.00
