Onyx BMX ULTRA HG-110/10mm Bolt-on Rear Hub

Name: Onyx BMX ULTRA HG-110/10mm Bolt-on Rear Hub
SKU: 042046
Availability: InStock

Onyx BMX ULTRA HG-110/10mm Bolt-on Rear Hub

New for 2025. Bearings standardized to EZO.

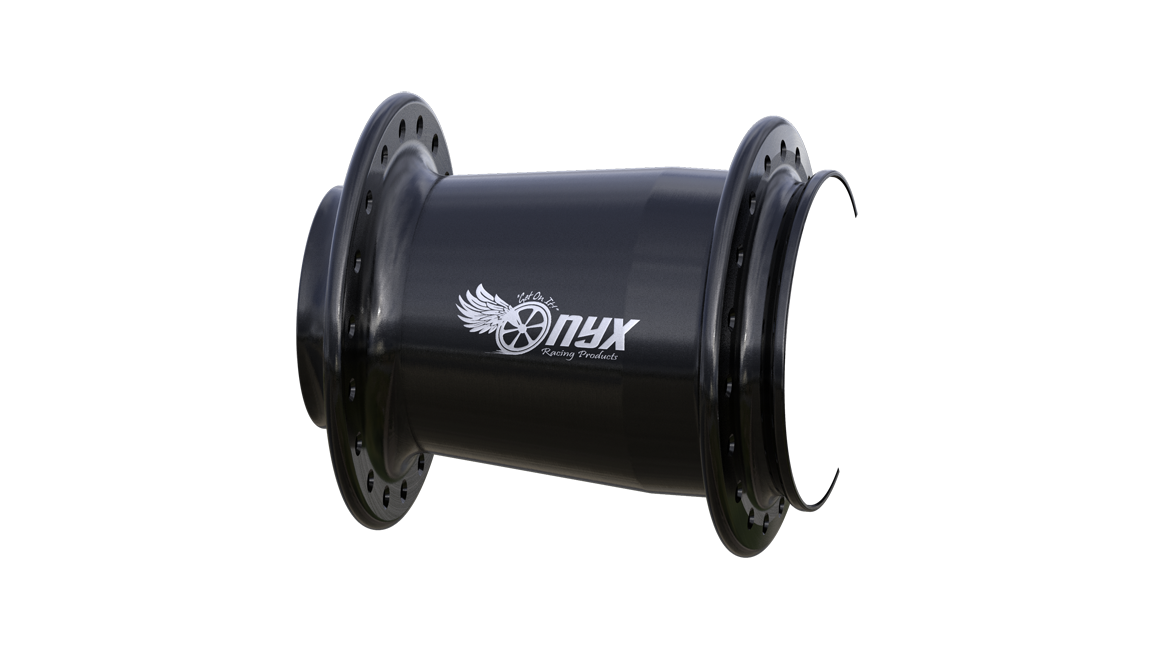

Hubshell Hubshell

Spoke Count *

Color *

Anodized - Black

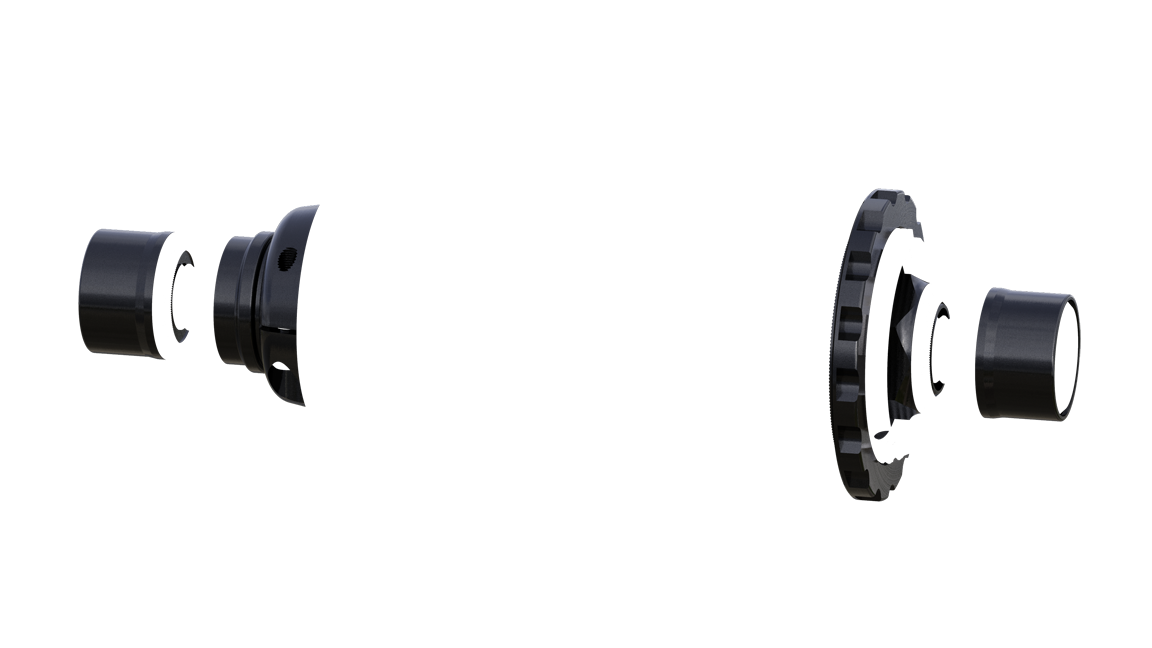

Widgets Widgets

Color *

Anodized - Black

Select Black or Clear for no extra charge.

$0.00

Wheel Build (optional) Wheel Build (optional)

• Carbon • Tubeless compatible • 300g weight (=/- 10g)

Your selection:

RIM, 20inch (406b) x 21i, SYMMETRICAL, 36 SP

Clear selection

$425.00

- Rim Decal Color - Rim Decal Color

• Replaceable vinyl decals (2 per rim - 180 degrees apart)

Onyx Rim Decal, 20inch (406b) x 21i, SYMMETRICAL, 36 SP

Color *

Anodized - Black

$0.00

- Nipples Color and Material - Nipples Color and Material

Nipple Group, 36 Nipples

Nipple Color and Material *

$11.52

- Spokes Color and Material - Spokes Color and Material

Spoke Group, J Bend - 36 Spokes

Spoke Color and Material *

$36.00

$957.52

Add to Wishlist (Favorites)

Save Image

SKU: 042046 Categories: BMX Hubs, Ultra Series

Description and Drawings

A - Hub Center To Flange Center, Non-Drive Side (mm)	28.07
B - Hub Center To Flange Center, Drive Side (mm)	27.91
C - Axle Width (mm)	110
Spoke Hole Circle Diameter, Drive Side (mm)	55
Spoke Hole Circle Diameter, Non-Drive Side (mm)	55
Spoke Hole Counts Available	36

Weight	17.1 oz / 485 g
Dimensions - Approximate for Shipping	9.5 × 4.5 × 4 in
Hub Type	Rear
Axle Width - mm	110
Axle Diameter - mm	10
Spoke Count	36
Attach Style	Bolt-on
Hub Shell Style	Solid
Hub Shell Flange Type	J-Bend
Bolts	Titanium
Driver Style	Shimano Hyperglide®
Spoke Tension - Max kgf	120
Product Line	Classic

36 Spoke Holes	Non-Drive Side (mm)	Drive Side (mm)
Although we do our best to ensure these values are correct, always verify by measurement. Onyx Racing takes no responsibility for errors.
Results for an ERD of 0 mm
1-Cross	0	0
2-Cross	0	0
3-Cross	0	0
4-Cross	0	0

Name	Qty Per	SKU	Price
Axle, Rear - BMX 110-10mm Bolt	1	093211	$20.00
Bearing, Sealed - 6804 - 20 x 32 x 7	1	111161	$14.00
Bearing, Sealed - 6805 - 25 x 37 x 7	1	111162	$15.00
Bearing, Sealed - 6806 - 30 x 42 x 7	1	114530	$30.00
Bolt, SOC HD 10mm x 1.5pitch x 40mm, Titanium	2	084166	$20.00
Bolt, SOC HD 3mm x 8mm, Stainless Steel	1	042557	$0.25
Cog Spacer Pack, HG & HGSS - 7.3mm		086351	$15.00
COG, HG and HGSS - Anodized Aluminum			$35.00
COG, HG and HGSS - Stainless Steel			$50.00
Cone, Knurled - 10mm	2	100384	$10.00
Driver Kit, BMX Ultra - Stainless Steel	1	096213	$100.00
Endcap, Knurled - Left, ISO 12mm Thru	1	100382	$20.00
Endcap, Knurled - Right, HG 12mm Thru	1	100383	$20.00
Nut Kit, Locking Seal, 17mm	1	095273	$20.00
O-Ring, 15 mm x 2 mm	1	083657	$0.25
O-Ring, 18 mm x 1 mm	1	038382	$0.25
O-Ring, 28 mm x 1 mm	2	038383	$0.25
Retaining Ring, Internal 1.50dia - Stainless Steel	1	085301	$1.00
Ring, Locking - 1.37 x 24 thread per inch	1	038104	$15.00
Sprag Clutch, 437-Z	1	104760	$100.00
