| A - Hub Center To Flange Center, Non-Drive Side (mm) | 28.53 |
|---|---|
| B - Hub Center To Flange Center, Drive Side (mm) | 19.3 |
| C - Axle Width (mm) | 135 |
| Spoke Hole Circle Diameter, Drive Side (mm) | 50 |
| Spoke Hole Circle Diameter, Non-Drive Side (mm) | 60 |
| Spoke Hole Counts Available | 24/28/32 |
| Weight | 15.7 oz / 445 g |
|---|---|
| Dimensions - Approximate for Shipping | 9.5 × 4.5 × 4 in |
| Hub Type | |
| Axle Width - mm | |
| Attach Style | |
| Hub Shell Style | |
| Hub Shell Flange Type | |
| Disc Brake Rotor Mount | |
| Driver Style | |
| Spoke Tension - Max kgf | |
| Product Line |
| Although we do our best to ensure these values are correct, always verify by measurement. Onyx Racing takes no responsibility for errors. | ||
| Results for an ERD of 0 mm | ||
| 24 Spoke Holes | Non-Drive Side (mm) | Drive Side (mm) |
|---|---|---|
| 1-Cross | 0 | 0 |
| 2-Cross | 0 | 0 |
| 3-Cross | 0 | 0 |
| 4-Cross | 0 | 0 |
| 28 Spoke Holes | Non-Drive Side (mm) | Drive Side (mm) |
| 1-Cross | 0 | 0 |
| 2-Cross | 0 | 0 |
| 3-Cross | 0 | 0 |
| 4-Cross | 0 | 0 |
| 32 Spoke Holes | Non-Drive Side (mm) | Drive Side (mm) |
| 1-Cross | 0 | 0 |
| 2-Cross | 0 | 0 |
| 3-Cross | 0 | 0 |
| 4-Cross | 0 | 0 |
| Image | Name | Qty Per | SKU | Price |
|---|---|---|---|---|
 | Axle, Rear - CX HG 135 | 1 | 085503 | $20.00 |
 | Bearing, Ceramic Hybrid - 6805 - 25 x 37 x 7 | 1 | 038495 | Original price was: $42.00.$31.50Current price is: $31.50. |
 | Bearing, Ceramic Hybrid - 6902 - 15 x 28 x 7 | 2 | 038106 | Original price was: $28.00.$21.00Current price is: $21.00. |
 | Bolt, SOC HD 3mm x 8mm, Stainless Steel | 1 | 042557 | $0.25 |
 | Cog Spacer Pack, HG & HGSS - 18.9mm | 109597 | $30.00 | |

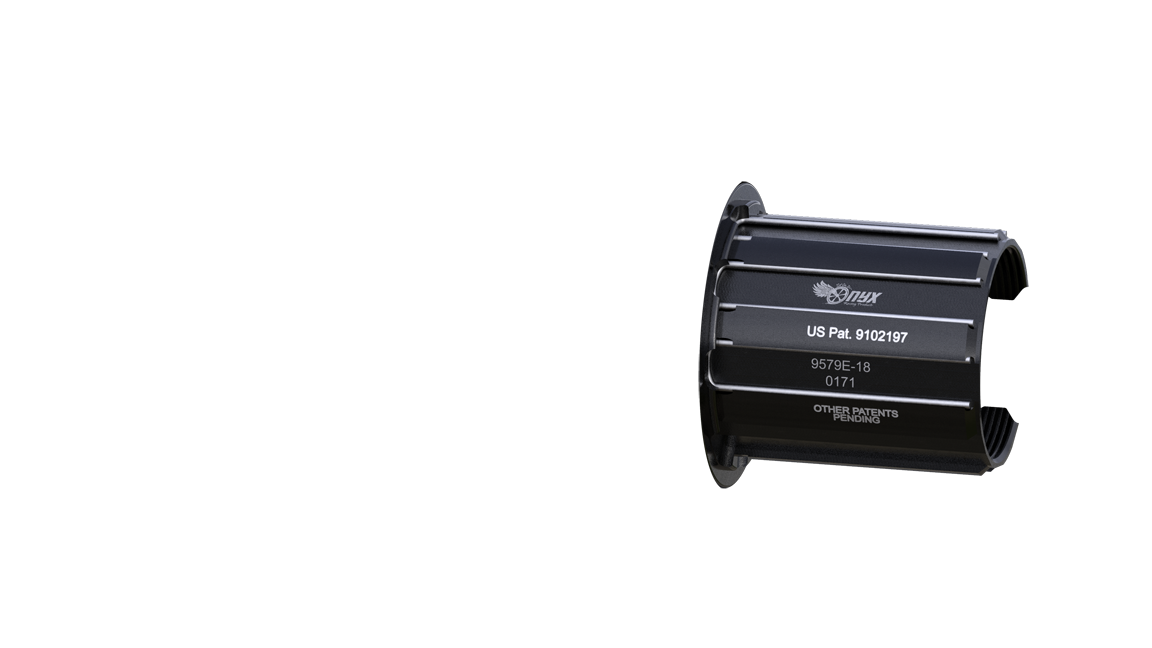

 | Driver Kit, ROAD or CX HG DS 11SPD - Alloy | 1 | 096232 | |
 | Driver Kit, ROAD or CX HG DS 11SPD - Stainless Steel | 1 | 096221 | |
 | Nut Kit, Locking - 15mm | 1 | 092254 | $20.00 |
 | O-Ring, 10 mm x 2 mm | 1 | 083937 | $0.25 |
 | O-Ring, 13 mm x 1 mm | 1 | 038160 | $0.25 |
 | O-Ring, 23 mm x 1 mm | 3 | 039513 | $0.25 |
 | Retaining Ring, Internal 1.25dia - Stainless Steel | 1 | 085300 | $1.00 |
 | Retaining Ring, Internal 28mm bore | 2 | 040216 | $1.00 |
 | Sprag Clutch, 432-Z | 1 | 039661 | $80.00 |
 | Sprag Clutch, 432-Z2 | 1 | 084579 | $80.00 |
