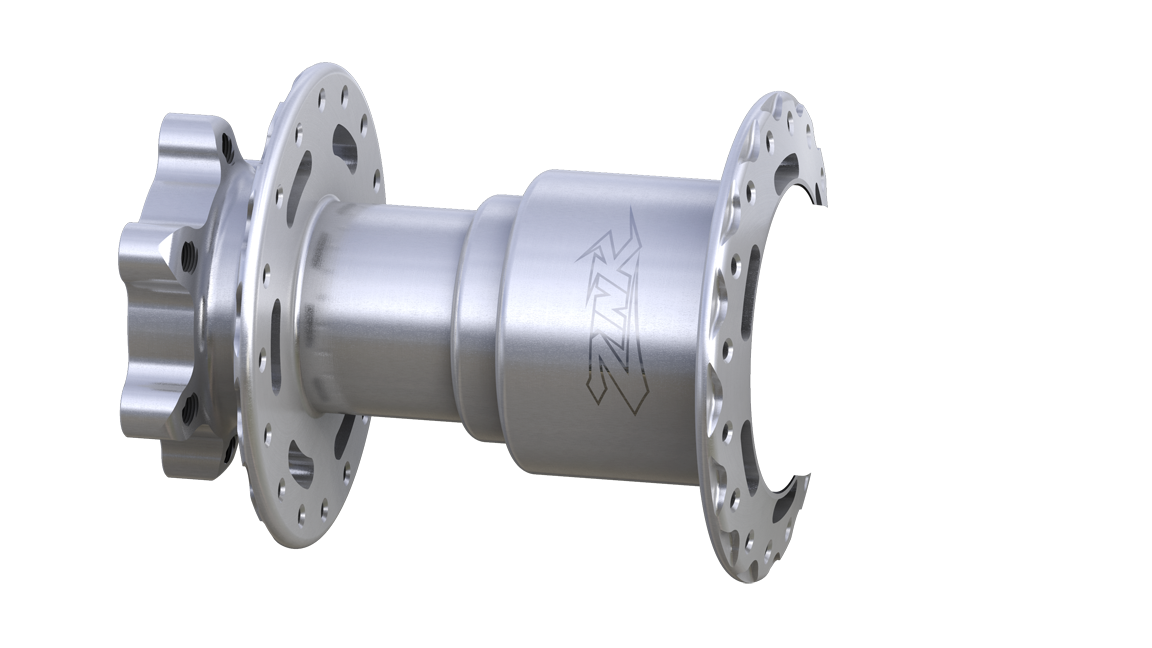

Onyx DH Cam Zink Special ISO XD-150/12mm Thru-bolt Rear Hub [Discontinued]

This hub is no longer manufactured, however Parts and Kits for this hub are available.

SKU: 095386 Category:

Description and Drawings

SKU: 095386
SKU: 095386
A - Hub Center To Flange Center, Non-Drive Side (mm) 38.35
B - Hub Center To Flange Center, Drive Side (mm) 27.42
C - Axle Width (mm) 150
Spoke Hole Circle Diameter, Drive Side (mm) 60
Spoke Hole Circle Diameter, Non-Drive Side (mm) 60
Spoke Hole Counts Available 32

Specs

Weight 14.1 oz / 400 g
Dimensions - Approximate for Shipping 9.5 × 4.5 × 4 in
Hub Type

Axle Width - mm

Attach Style

Hub Shell Style

Hub Shell Flange Type

Disc Brake Rotor Mount

Driver Style

Spoke Tension - Max kgf

Product Line

Onyx DH Cam Zink Special ISO XD-150/12mm Thru-bolt Rear Hub [Discontinued]

  • Please enter a number from 100 to 999.
  • This field is for validation purposes and should be left unchanged.

Although we do our best to make sure these spoke length values are correct, it is always best to measure the hub and verify these values for yourself!  Onyx Racing takes no responsibility for errors in these calculations.

Spoke length results for an ERD of 0 mm
32 Spoke HolesNon-Drive Side
(mm)
Drive Side
(mm)
1-Cross 00
2-Cross 00
3-Cross 00
4-Cross 00

Parts for Onyx DH Cam Zink Special ISO XD-150/12mm Thru-bolt Rear Hub

ImageNameQty PerSKUPrice
Onyx Axle, Rear - MTB DH ISO XD 087364
Axle, Rear - MTB DH ISO XD1087364
Onyx Bearing, Ceramic Hybrid - 6804 - 20 x 32 x 7 038297
Bearing, Ceramic Hybrid - 6804 - 20 x 32 x 72038297$32.00
Onyx Bearing, Ceramic Hybrid - 6805 - 25 x 37 x 7 038495
Bearing, Ceramic Hybrid - 6805 - 25 x 37 x 71038495$42.00
Onyx Bearing, Ceramic Hybrid - 6902 - 15 x 28 x 7 038106
Bearing, Ceramic Hybrid - 6902 - 15 x 28 x 70038106$28.00
Onyx Bolt, SOC HD 3mm x 8mm, Stainless Steel 042557
Bolt, SOC HD 3mm x 8mm, Stainless Steel1042557$0.25
Onyx Driver Kit, MTB XD - Alloy 096230
Driver Kit, MTB XD - Alloy1096230
Onyx Endcap, Knurled - Left, ISO 12mm Thru 100382 in Red
Endcap, Knurled - Left, ISO 12mm Thru1100382$20.00
Onyx Endcap, Knurled - Right, XD 12mm Thru 100408 in Red
Endcap, Knurled - Right, XD 12mm Thru1100408$15.00 - $20.00 depending on selected option
Onyx O-Ring, 15 mm x 2 mm 083657
O-Ring, 15 mm x 2 mm1083657$0.25
Onyx O-Ring, 18 mm x 1 mm 038382
O-Ring, 18 mm x 1 mm1038382$0.25
Onyx O-Ring, 23 mm x 1 mm 039513
O-Ring, 23 mm x 1 mm2039513$0.25
Onyx O-Ring, Square - 1.1875 od x 0.0625 095272
O-Ring, Square - 1.1875 od x 0.06251095272$0.25
Onyx Retaining Ring, Internal 1.25dia - Stainless Steel 085300
Retaining Ring, Internal 1.25dia - Stainless Steel1085300$1.00
Onyx Sprag Clutch, 432-Z 039661
Sprag Clutch, 432-Z2039661$80.00
