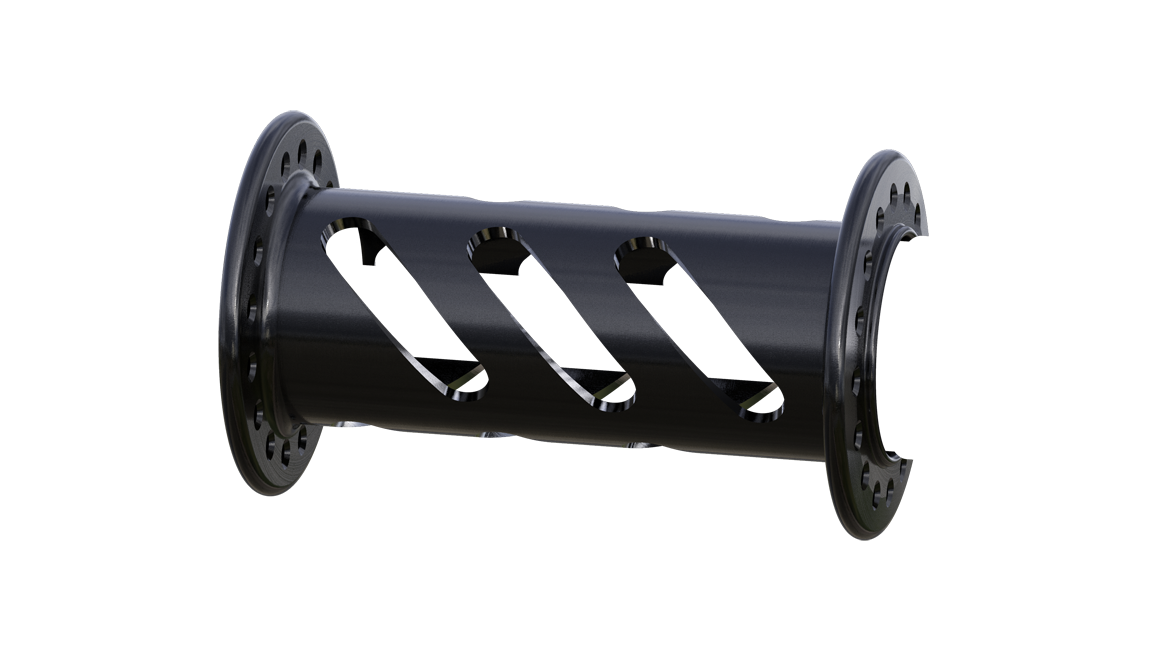

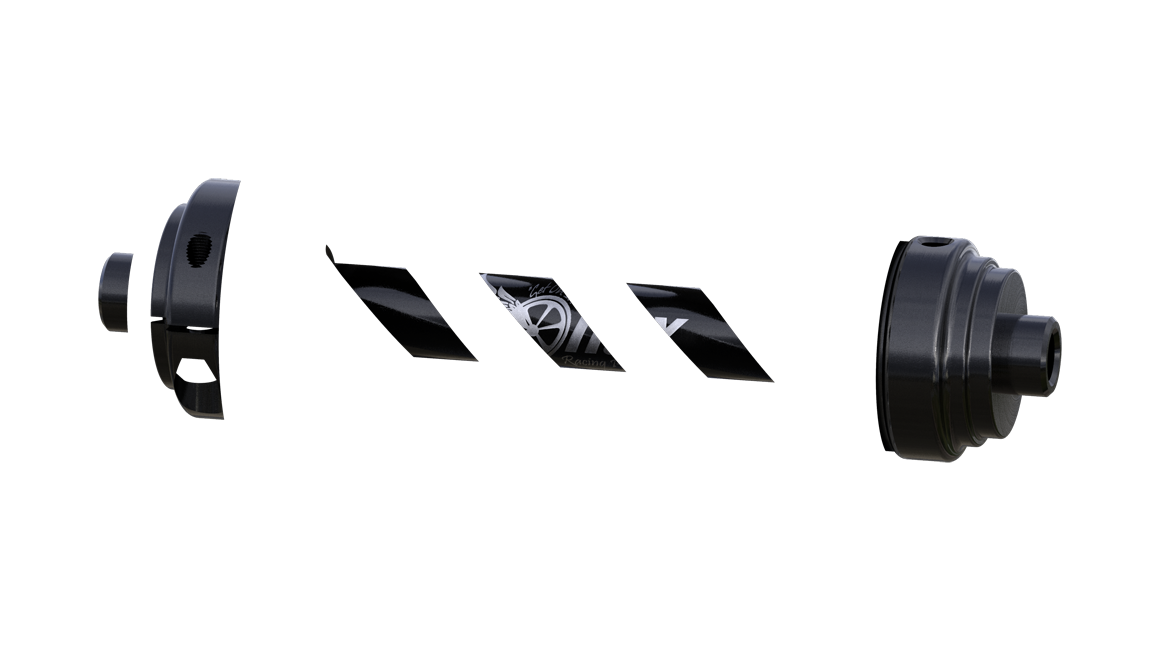

![Onyx ROAD 100/QR Helix Front Hub [Discontinued]](https://onyxrp.com/wp-content/uploads/Onyx-Road-Bike-Front-Hub-100mm-axle-QR-helix-shell-083439-Helix-ano-cr-ano-cr_base.png)
| A - Hub Center To Flange Center, Non-Drive Side (mm) | 34.6 |
|---|---|
| B - Hub Center To Flange Center, Drive Side (mm) | 34.6 |
| C - Axle Width (mm) | 100 |
| Spoke Hole Circle Diameter, Drive Side (mm) | 34 |
| Spoke Hole Circle Diameter, Non-Drive Side (mm) | 34 |
| Spoke Hole Counts Available | 18/20/24/28/32 |
| Weight | 2.9 oz / 82 g |
|---|---|
| Dimensions - Approximate for Shipping | 9.5 × 4.5 × 4 in |
| Hub Type | |
| Axle Width - mm | |
| Attach Style | |
| Hub Shell Style | |
| Hub Shell Flange Type | |
| Spoke Tension - Max kgf | |
| Product Line |
| Although we do our best to ensure these values are correct, always verify by measurement. Onyx Racing takes no responsibility for errors. | ||
| Results for an ERD of 0 mm | ||
| 18 Spoke Holes | Non-Drive Side (mm) | Drive Side (mm) |
|---|---|---|
| 1-Cross | 0 | 0 |
| 2-Cross | 0 | 0 |
| 3-Cross | 0 | 0 |
| 4-Cross | 0 | 0 |
| 20 Spoke Holes | Non-Drive Side (mm) | Drive Side (mm) |
| 1-Cross | 0 | 0 |
| 2-Cross | 0 | 0 |
| 3-Cross | 0 | 0 |
| 4-Cross | 0 | 0 |
| 24 Spoke Holes | Non-Drive Side (mm) | Drive Side (mm) |
| 1-Cross | 0 | 0 |
| 2-Cross | 0 | 0 |
| 3-Cross | 0 | 0 |
| 4-Cross | 0 | 0 |
| 28 Spoke Holes | Non-Drive Side (mm) | Drive Side (mm) |
| 1-Cross | 0 | 0 |
| 2-Cross | 0 | 0 |
| 3-Cross | 0 | 0 |
| 4-Cross | 0 | 0 |
| 32 Spoke Holes | Non-Drive Side (mm) | Drive Side (mm) |
| 1-Cross | 0 | 0 |
| 2-Cross | 0 | 0 |
| 3-Cross | 0 | 0 |
| 4-Cross | 0 | 0 |
| Image | Name | Qty Per | SKU | Price |
|---|---|---|---|---|
 | Axle, Front - ROAD | 1 | 083149-logo | $15.00 - $20.00 depending on selected option |
 | Bolt, SOC HD 3mm x 8mm, Stainless Steel | 1 | 042557 | $0.25 |
 | Nut kit, Locking - 15mm | 1 | 091057 | $20.00 |
 | O-Ring, 10 mm x 2 mm | 1 | 083937 | $0.25 |
 | O-Ring, 11.5 mm x 1 mm | 2 | 040877 | $0.25 |
 | Retaining Ring, Internal 24mm bore | 2 | 083441 | $1.00 |
 | Spacer - Stainless Steel | 1 | 085692 | $10.00 |
