When selecting hubshell and widgets colors, the hub image will not change, however the correct SKU for the colors selected will appear in the Cart.
New for 2025. Bearings standardized to EZO.
| A - Hub Center To Flange Center, Non-Drive Side (mm) | 43.25 |
|---|---|
| B - Hub Center To Flange Center, Drive Side (mm) | 37.42 |
| C - Axle Width (mm) | 177 |
| Spoke Hole Circle Diameter, Drive Side (mm) | 54.0 |
| Spoke Hole Circle Diameter, Non-Drive Side (mm) | 54.0 |
| Spoke Hole Counts Available | 28/32 |
| Weight | 17.1 oz / 485 g |
|---|---|
| Dimensions - Approximate for Shipping | 9.5 × 4.5 × 4 in |
| Hub Type | |
| Hub Spacing | |
| Axle Width - mm | |
| Axle Diameter - mm | |
| Spoke Count | |
| Attach Style | |
| Hub Shell Style | |
| Hub Shell Flange Type | |
| Disc Brake Rotor Mount | |
| Driver Style | |
| Spoke Tension - Max kgf | |
| Product Line |
| Although we do our best to ensure these values are correct, always verify by measurement. Onyx Racing takes no responsibility for errors. | ||
| Results for an ERD of 0 mm | ||
| 28 Spoke Holes | Non-Drive Side (mm) | Drive Side (mm) |
|---|---|---|
| 1-Cross | 0 | 0 |
| 2-Cross | 0 | 0 |
| 3-Cross | 0 | 0 |
| 4-Cross | 0 | 0 |
| 32 Spoke Holes | Non-Drive Side (mm) | Drive Side (mm) |
| 1-Cross | 0 | 0 |
| 2-Cross | 0 | 0 |
| 3-Cross | 0 | 0 |
| 4-Cross | 0 | 0 |
| Image | Name | Qty Per | SKU | Price |
|---|---|---|---|---|
 | Adaptor, CL Bearing Sleeve | 1 | 095219 | $10.00 |
 | Axle, Rear - FAT CL 170-12mm Thru | 1 | 103120 | $30.00 |
 | Bearing, Sealed - 6804 - 20 x 32 x 7 | 1 | 111161 | $14.00 |
 | Bearing, Sealed - 6805 - 25 x 37 x 7 | 1 | 111162 | $15.00 |
 | Driver Assembly, Sprag Clutch, 432-2.0 | 1 | 103317 | $50.00 |

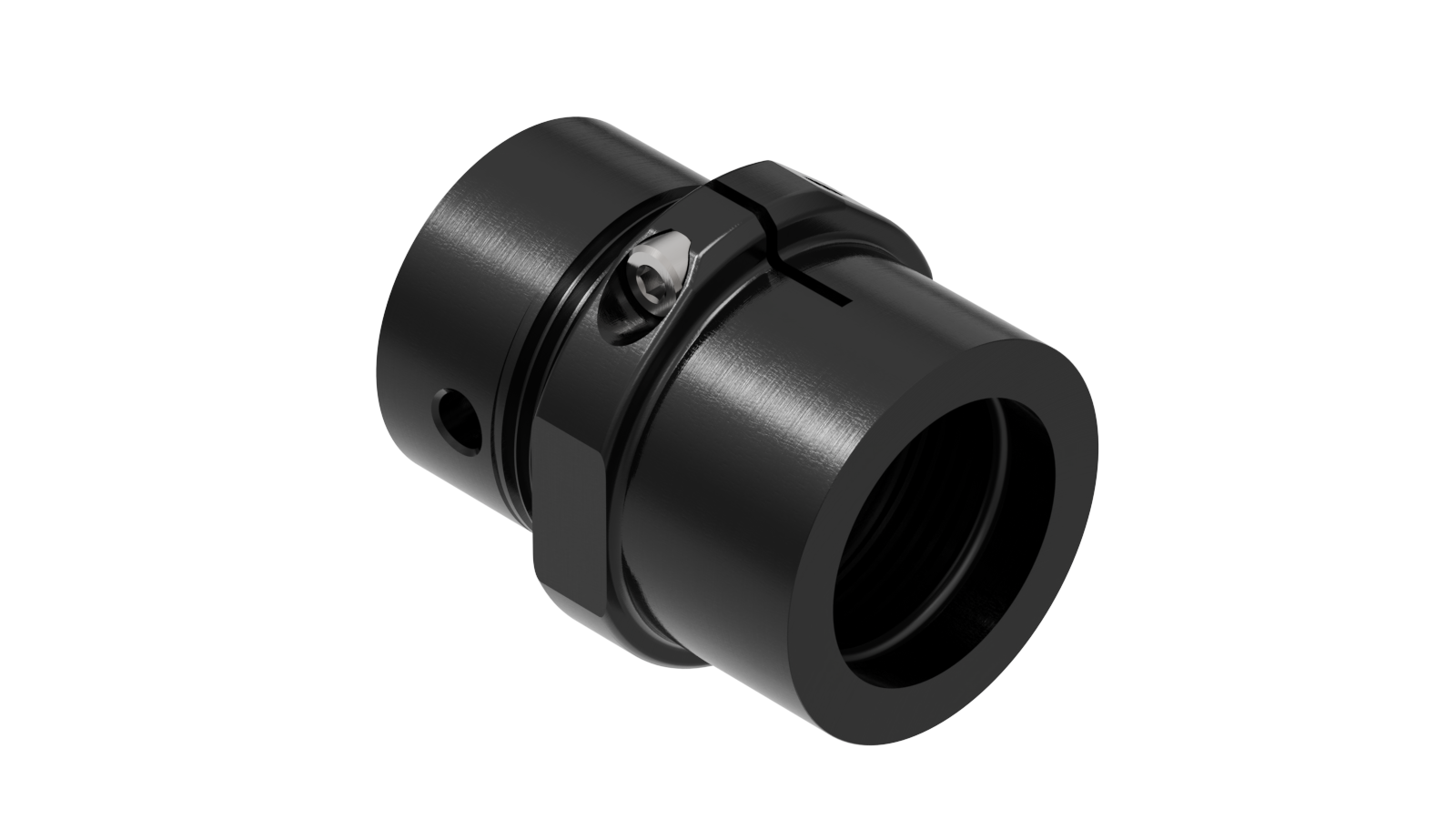

 | Endcap Assembly, Preload 3.5mm - 12mm Thru | 1 | 103146 | $20.00 |
 | Endcap, 3.5mm Right, MS and N3W 12mm Thru | 2 | 103305 | $20.00 |
 | MFU Freehub Assembly, MS - Alloy | 1 | 099891 | $70.00 |
 | MFU Freehub Assembly, MS - Chromoly | 1 | 104531 | $70.00 |
 | O-Ring, 14.5mm x 1mm | 3 | 099959 | $0.25 |
 | Retaining Ring, Internal 1.25dia - Stainless Steel | 1 | 085300 | $1.00 |
 | Ring, Internal Retaining, 32mm Bore | 2 | 039146 | $1.00 |
 | Spacer, Freehub, HG and N3W | 1 | 101318 | $4.50 |
 | Sprag Clutch, 432-Z | 2 | 039661 | $80.00 |
