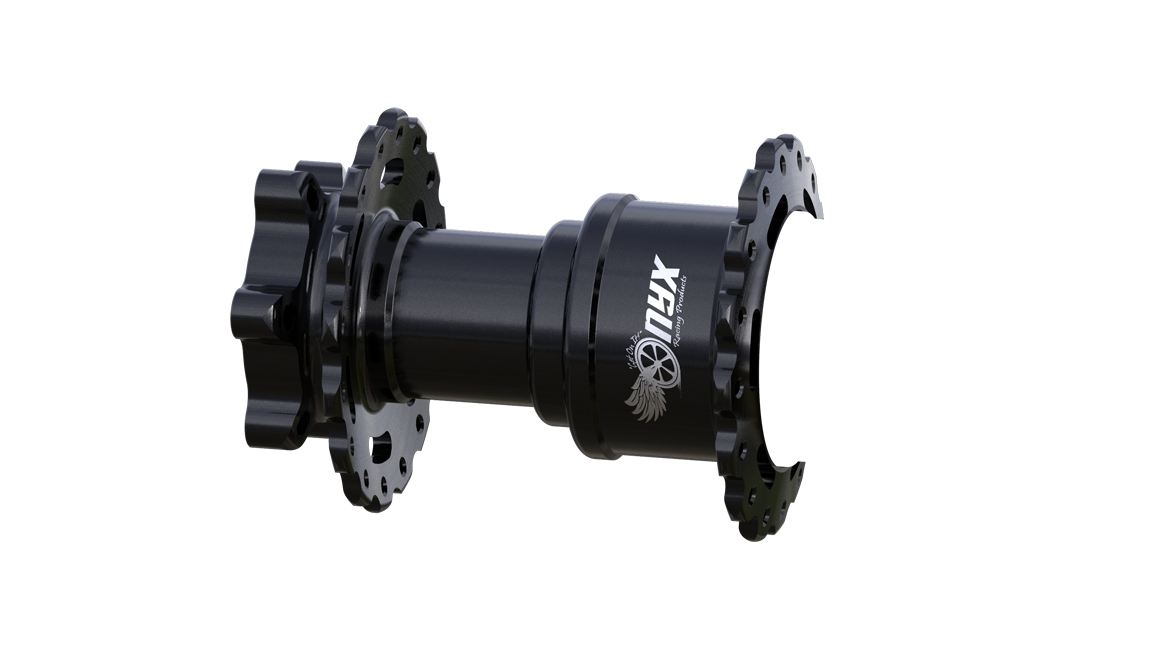

Onyx Vesper MTB DH ISO XDR 150/12 Thru-bolt Rear Hub

Name: Onyx Vesper MTB DH ISO XDR 150/12 Thru-bolt Rear Hub
SKU: 102734
Availability: InStock

New for 2025. Bearings standardized to EZO.

Hubshell Hubshell

Spoke Count *

Color *

Anodized - Black

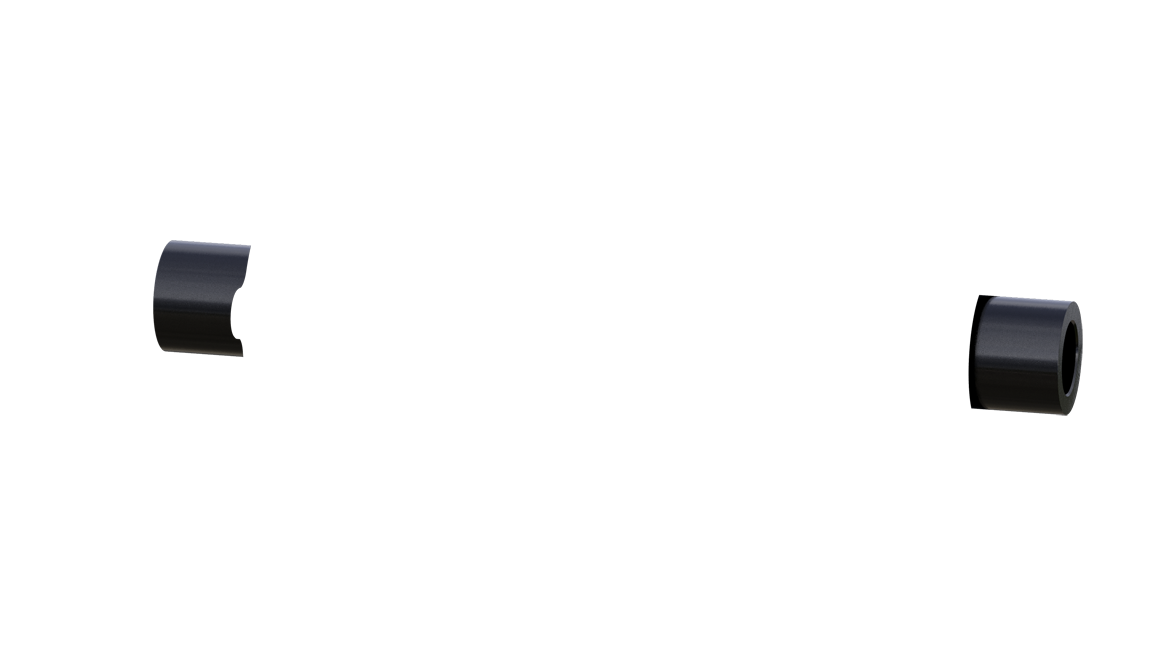

Widgets Color *

Anodized - Black

$510.00

Save Image

SKU: 102734 Categories: Downhill/Superboost Hubs, Mountain Bike Hubs

A - Hub Center To Flange Center, Non-Drive Side (mm)	40.15
B - Hub Center To Flange Center, Drive Side (mm)	26.97
C - Axle Width (mm)	150
Spoke Hole Circle Diameter, Drive Side (mm)	60.0
Spoke Hole Circle Diameter, Non-Drive Side (mm)	60.0
Spoke Hole Counts Available	28/32

Weight	14.3 oz / 405 g
Dimensions - Approximate for Shipping	9.5 × 4.5 × 4 in
Hub Type	Rear
Axle Width - mm	150
Axle Diameter - mm	12
Spoke Count	28, 32
Attach Style	Thru-bolt
Hub Shell Style	Solid
Hub Shell Flange Type	J-Bend
Disc Brake Rotor Mount	ISO 6-Bolt Flange
Driver Style	SRAM XDR™
Spoke Tension - Max kgf	120
Product Line	Vesper

28 Spoke Holes	Non-Drive Side (mm)	Drive Side (mm)
Although we do our best to ensure these values are correct, always verify by measurement. Onyx Racing takes no responsibility for errors.
Results for an ERD of 0 mm
1-Cross	0	0
2-Cross	0	0
3-Cross	0	0
4-Cross	0	0
32 Spoke Holes	Non-Drive Side (mm)	Drive Side (mm)
1-Cross	0	0
2-Cross	0	0
3-Cross	0	0
4-Cross	0	0

Name	Qty Per	SKU	Price
Axle, Rear - MTB DH 150-12mm Thru	1	099876	$20.00
Bearing, Sealed - 6804 - 20 x 32 x 7	1	111161	$14.00
Bearing, Sealed - 6805 - 25 x 37 x 7	1	111162	$15.00
Bearing, Sealed - 6902 - 15 x 28 x 7	1	111160	$12.00
Driver Assembly, Sprag Clutch, 432-1.5	1	099618	$50.00
Endcap, Right, 12mm Thru	1	099877	$20.00
MFU Freehub Assembly, XDR - Alloy	1	099849	$70.00
O-Ring, 14.5mm x 1mm	2	099959	$0.25
Preload Endcap Assembly - 12mm Thru	1	103145	$20.00
Retaining Ring, Internal 1.25dia - Stainless Steel	1	085300	$1.00
Spacer, Cassette	1	094694	$5.00
Spacer, Freehub	1	099807	$4.50
Sprag Clutch, 432-Z	1	104758	$80.00
Sprag Clutch, 432-Z2	1	104759	$80.00
