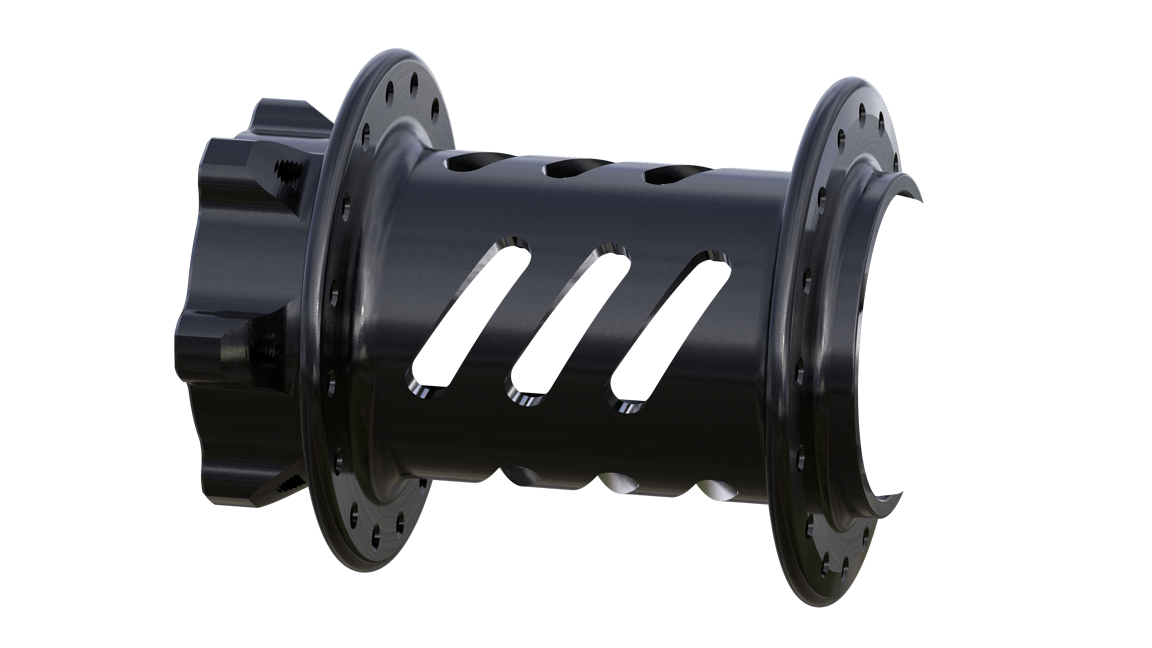

Onyx MTB BOOST TC ISO-110/15mm Thru-bolt Helix Front Hub

SKU: 093765-Helix Categories: ,

Description and Drawings

SKU: 093765-Helix
SKU: 093765-Helix
A - Hub Center To Flange Center, Non-Drive Side (mm) 25
B - Hub Center To Flange Center, Drive Side (mm) 33.5
C - Axle Width (mm) 110
Spoke Hole Circle Diameter, Drive Side (mm) 57
Spoke Hole Circle Diameter, Non-Drive Side (mm) 57
Spoke Hole Counts Available 24/28/32/36

Specs

Weight 8.4 oz / 238 g
Dimensions - Approximate for Shipping 9.5 × 4.5 × 4 in
Hub Type

Axle Width - mm

Axle Diameter - mm

Spoke Count

, , ,

Attach Style

Endcaps

Hub Shell Style

Hub Shell Flange Type

Disc Brake Rotor Mount

Spoke Tension - Max kgf

Product Line

Onyx MTB BOOST TC ISO-110/15mm Thru-bolt Helix Front Hub

Please enter a number from 100 to 999.
This field is for validation purposes and should be left unchanged.
Although we do our best to ensure these values are correct, always verify by measurement. Onyx Racing takes no responsibility for errors.
Results for an ERD of 0 mm
24 Spoke HolesNon-Drive Side (mm)Drive Side (mm)
1-Cross 00
2-Cross 00
3-Cross 00
4-Cross 00
28 Spoke HolesNon-Drive Side (mm)Drive Side (mm)
1-Cross 00
2-Cross 00
3-Cross 00
4-Cross 00
32 Spoke HolesNon-Drive Side (mm)Drive Side (mm)
1-Cross 00
2-Cross 00
3-Cross 00
4-Cross 00
36 Spoke HolesNon-Drive Side (mm)Drive Side (mm)
1-Cross 00
2-Cross 00
3-Cross 00
4-Cross 00

Parts for Onyx MTB BOOST TC ISO-110/15mm Thru-bolt Helix Front Hub

ImageNameQty PerSKUPrice
Onyx Axle, Front - MTB BOOST TC ISO 110-15mm Thru 093766 Onyx Logo in Red
Axle, Front - MTB BOOST TC ISO 110-15mm Thru1093766-logo$30.00
Onyx Bearing, Ceramic Hybrid - 6805 - 25 x 37 x 7 038495
Bearing, Ceramic Hybrid - 6805 - 25 x 37 x 72038495 Original price was: $42.00.Current price is: $31.50.
Onyx Bolt, SOC HD 3mm x 8mm, Stainless Steel 042557
Bolt, SOC HD 3mm x 8mm, Stainless Steel1042557$0.25
Endcap, TC
Endcap, TC2087563$10.00
Onyx Nut, Locking - 25mm 041016 in Red
Nut Kit, Locking - 25mm1091045$20.00
Onyx O-Ring, 23 mm x 1 mm 039513
O-Ring, 23 mm x 1 mm2039513$0.25
