| A - Hub Center To Flange Center, Non-Drive Side (mm) | 26.8 |
|---|---|
| B - Hub Center To Flange Center, Drive Side (mm) | 42.3 |
| C - Axle Width (mm) | 110 |
| Spoke Hole Circle Diameter, Drive Side (mm) | 42.0 |
| Spoke Hole Circle Diameter, Non-Drive Side (mm) | 57.0 |
| Spoke Hole Counts Available | 28/32 |
| Weight | 6.5 oz / 184 g |
|---|---|
| Dimensions - Approximate for Shipping | 9.5 × 4.5 × 4 in |
| Hub Type | |
| Axle Width - mm | |
| Axle Diameter - mm | |
| Spoke Count | |
| Attach Style | |
| Endcaps | |
| Hub Shell Style | |
| Hub Shell Flange Type | |
| Disc Brake Rotor Mount | |
| Spoke Tension - Max kgf | |
| Product Line |
| Although we do our best to ensure these values are correct, always verify by measurement. Onyx Racing takes no responsibility for errors. | ||
| Results for an ERD of 0 mm | ||
| 28 Spoke Holes | Non-Drive Side (mm) | Drive Side (mm) |
|---|---|---|
| 1-Cross | 0 | 0 |
| 2-Cross | 0 | 0 |
| 3-Cross | 0 | 0 |
| 4-Cross | 0 | 0 |
| 32 Spoke Holes | Non-Drive Side (mm) | Drive Side (mm) |
| 1-Cross | 0 | 0 |
| 2-Cross | 0 | 0 |
| 3-Cross | 0 | 0 |
| 4-Cross | 0 | 0 |
| Image | Name | Qty Per | SKU | Price |
|---|---|---|---|---|
 | Bearing, Standard - 6804 - 20 x 32 x 7 | 2 | 099060 | Original price was: $9.00.$6.75Current price is: $6.75. |

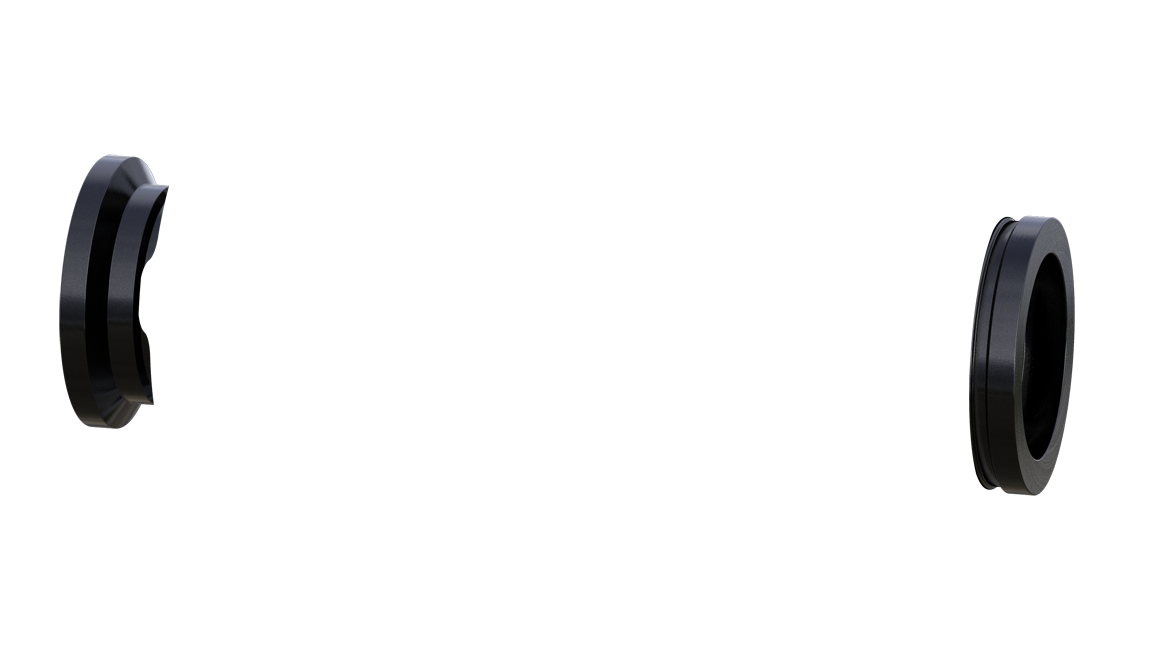

 | Endcap, Front - Left, RS-1 110-15mm | 1 | 103300 | $20.00 |
 | Endcap, Front - Right, RS-1 110-15mm | 1 | 103301 | $20.00 |
 | O-Ring, 23 mm x 2 mm | 1 | 084425 | $0.25 |
 | O-Ring, 28mm x 2mm | 1 | 095019 | $0.25 |
 | Spacer, Internal | 1 | 098976 | $10.00 |
