Onyx MTB BOOST CL-110/20mm Thru-bolt Front Hub

SKU: 099964 Category:

Description and Drawings

Drawing coming soon

A - Hub Center To Flange Center, Non-Drive Side (mm) 25.0
B - Hub Center To Flange Center, Drive Side (mm) 33.5
C - Axle Width (mm) 110
Spoke Hole Circle Diameter, Drive Side (mm) 57.0
Spoke Hole Circle Diameter, Non-Drive Side (mm) 57.0
Spoke Hole Counts Available 28/32/36

Specs

Weight 7.7 oz / 218 g
Dimensions - Approximate for Shipping 9.5 × 4.5 × 4 in
Hub Type

Hub Spacing

Axle Width - mm

Axle Diameter - mm

Spoke Count

, ,

Attach Style

Hub Shell Style

Hub Shell Flange Type

Disc Brake Rotor Mount

Spoke Tension - Max kgf

Product Line

Onyx MTB BOOST CL-110/20mm Thru-bolt Front Hub

  • Please enter a number from 100 to 999.
  • This field is for validation purposes and should be left unchanged.

Although we do our best to make sure these spoke length values are correct, it is always best to measure the hub and verify these values for yourself!  Onyx Racing takes no responsibility for errors in these calculations.

Spoke length results for an ERD of 0 mm
28 Spoke HolesNon-Drive Side
(mm)
Drive Side
(mm)
1-Cross 00
2-Cross 00
3-Cross 00
4-Cross 00
32 Spoke HolesNon-Drive Side
(mm)
Drive Side
(mm)
1-Cross 00
2-Cross 00
3-Cross 00
4-Cross 00
36 Spoke HolesNon-Drive Side
(mm)
Drive Side
(mm)
1-Cross 00
2-Cross 00
3-Cross 00
4-Cross 00

Parts for Onyx MTB BOOST CL-110/20mm Thru-bolt Front Hub

ImageNameQty PerSKUPrice

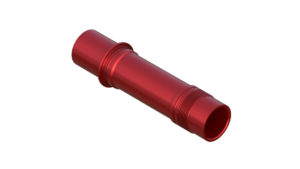

Onyx Axle, Front - MTB BOOST CL 110-20mm Thru 099965 Onyx Logo in Red
Axle, Front - MTB BOOST CL 110-20mm Thru1099965-logo$30.00
Onyx Bearing, Ceramic Hybrid - 6805 - 25 x 37 x 7 038495
Bearing, Ceramic Hybrid - 6805 - 25 x 37 x 72038495$42.00
Onyx Bolt, SOC HD 3mm x 8mm, Stainless Steel 042557
Bolt, SOC HD 3mm x 8mm, Stainless Steel1042557$0.25
Onyx Nut, Locking - 25mm 041016 in Red
Nut Kit, Locking - 25mm1091045$20.00
Onyx O-Ring, 23 mm x 1 mm 039513
O-Ring, 23 mm x 1 mm2039513$0.25
