| A - Hub Center To Flange Center, Non-Drive Side (mm) | 36.9 |
|---|---|
| B - Hub Center To Flange Center, Drive Side (mm) | 22.47 |
| C - Axle Width (mm) | 141 |
| Spoke Hole Circle Diameter, Drive Side (mm) | 50.0 |
| Spoke Hole Circle Diameter, Non-Drive Side (mm) | 42.0 |
| Spoke Hole Counts Available | 24/28/32 |
| Weight | 16.8 oz / 476 g |
|---|---|
| Dimensions - Approximate for Shipping | 9.5 × 4.5 × 4 in |
| Hub Type | |
| Axle Width - mm | |
| Axle Diameter - mm | |
| Spoke Count | |
| Attach Style | |
| Hub Shell Style | |
| Hub Shell Flange Type | |
| Disc Brake Rotor Mount | |
| Driver Style | |
| Spoke Tension - Max kgf | |
| Product Line |
| Although we do our best to ensure these values are correct, always verify by measurement. Onyx Racing takes no responsibility for errors. | ||
| Results for an ERD of 0 mm | ||
| 24 Spoke Holes | Non-Drive Side (mm) | Drive Side (mm) |
|---|---|---|
| 1-Cross | 0 | 0 |
| 2-Cross | 0 | 0 |
| 3-Cross | 0 | 0 |
| 4-Cross | 0 | 0 |
| 28 Spoke Holes | Non-Drive Side (mm) | Drive Side (mm) |
| 1-Cross | 0 | 0 |
| 2-Cross | 0 | 0 |
| 3-Cross | 0 | 0 |
| 4-Cross | 0 | 0 |
| 32 Spoke Holes | Non-Drive Side (mm) | Drive Side (mm) |
| 1-Cross | 0 | 0 |
| 2-Cross | 0 | 0 |
| 3-Cross | 0 | 0 |
| 4-Cross | 0 | 0 |
| Image | Name | Qty Per | SKU | Price |
|---|---|---|---|---|

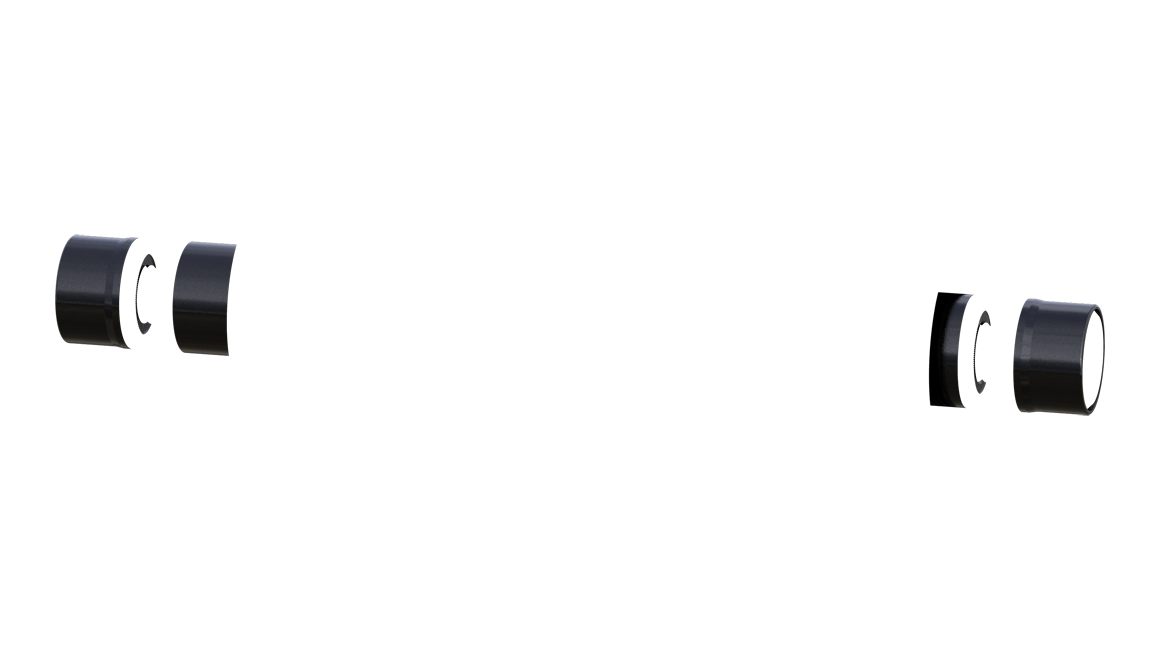

 | Axle, Rear - MTB BOOST 141-10mm Bolt | 1 | 099842 | $30.00 |
 | Bearing, Sealed - 6804 - 20 x 32 x 7 | 1 | 111161 | $14.00 |
 | Bearing, Sealed - 6805 - 25 x 37 x 7 | 1 | 111162 | $15.00 |
 | Bearing, Sealed - 6902 - 15 x 28 x 7 | 2 | 111160 | $12.00 |
 | Bolt, SOC HD 10mm x 1.5pitch x 40mm, Stainless Steel | 083123 | $10.00 | |
 | Bolt, SOC HD 10mm x 1.5pitch x 40mm, Titanium | 2 | 084166 | $20.00 |
 | Cog Spacer Pack, HG & HGSS - 18.9mm | 109597 | $30.00 | |
 | Cone, Knurled - 10mm | 2 | 100384 | $10.00 |
 | Driver Assembly, Sprag Clutch, 432-1.5 | 1 | 099618 | $50.00 |
 | Endcap, Right, 10mm Thru | 1 | 100881 | $20.00 |
 | MFU Freehub Assembly, HG-11SP - Alloy | 1 | 099806 | $70.00 |
 | O-Ring, 14.5mm x 1mm | 2 | 099959 | $0.25 |
 | Preload Endcap Assembly - 10mm Thru | 1 | 103144 | $20.00 |
 | Retaining Ring, Internal 1.25dia - Stainless Steel | 1 | 085300 | $1.00 |
 | Spacer, Cassette | 1 | 094694 | $5.00 |
 | Spacer, Freehub, HG and N3W | 1 | 101318 | $4.50 |
 | Sprag Clutch, 432-Z | 1 | 104758 | $80.00 |
 | Sprag Clutch, 432-Z2 | 1 | 104759 | $80.00 |
