Description and Drawings

A - Hub Center To Flange Center, Non-Drive Side (mm)	37.4
B - Hub Center To Flange Center, Drive Side (mm)	37.4
C - Axle Width (mm)	100
Spoke Hole Circle Diameter, Drive Side (mm)	34.0
Spoke Hole Circle Diameter, Non-Drive Side (mm)	34.0
Spoke Hole Counts Available	20/24/28/32

Specs

Weight	3.3 oz / 94 g
Dimensions - Approximate for Shipping	9.5 × 4.5 × 4 in
Hub Type	Front
Axle Width - mm	100
Spoke Count	20, 24, 28, 32
Attach Style	Quick Release
Hub Shell Style	Solid
Hub Shell Flange Type	J-Bend
Spoke Tension - Max kgf	120
Product Line	Vesper

Name: Onyx Vesper ROAD 100/QR Front Hub
SKU: 102751
Availability: InStock

20 Spoke Holes	Non-Drive Side (mm)	Drive Side (mm)
Although we do our best to ensure these values are correct, always verify by measurement. Onyx Racing takes no responsibility for errors.
Results for an ERD of 0 mm
1-Cross	0	0
2-Cross	0	0
3-Cross	0	0
4-Cross	0	0
24 Spoke Holes	Non-Drive Side (mm)	Drive Side (mm)
1-Cross	0	0
2-Cross	0	0
3-Cross	0	0
4-Cross	0	0
28 Spoke Holes	Non-Drive Side (mm)	Drive Side (mm)
1-Cross	0	0
2-Cross	0	0
3-Cross	0	0
4-Cross	0	0
32 Spoke Holes	Non-Drive Side (mm)	Drive Side (mm)
1-Cross	0	0
2-Cross	0	0
3-Cross	0	0
4-Cross	0	0

Name	Qty Per	SKU	Price
Bearing, Standard - 6802 - 15 x 24 x 5	2	099711	Original price was: $7.50.Current price is: $5.63.

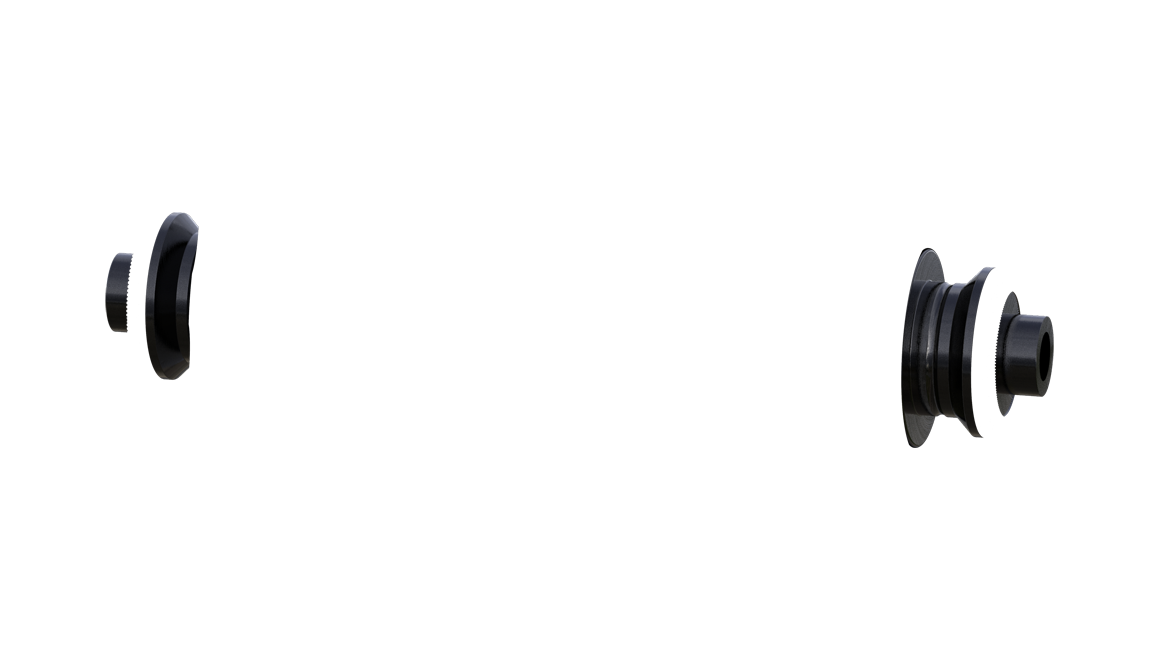

Endcap, Front - 100/QR	2	100831	$20.00
O-Ring, 20mm x 2mm	2	099512	$0.25
Spacer, Internal	1	099511	$10.00
