Onyx BMX 100/20mm Thru-bolt Front Hub

SKU: 040972 Categories: ,

Description and Drawings

Note: Does not include Thru-bolt. Must order separately.

SKU: 040972
SKU: 040972
A - Hub Center To Flange Center, Non-Drive Side (mm) 34.8
B - Hub Center To Flange Center, Drive Side (mm) 34.8
C - Axle Width (mm) 100
Spoke Hole Circle Diameter, Drive Side (mm) 50
Spoke Hole Circle Diameter, Non-Drive Side (mm) 50
Spoke Hole Counts Available 28/32/36

Specs

Weight 8.4 oz / 238 g
Dimensions - Approximate for Shipping 9.5 × 4.5 × 4 in
Hub Type

Axle Width - mm

Axle Diameter - mm

Spoke Count

, ,

Attach Style

Hub Shell Style

Hub Shell Flange Type

Spoke Tension - Max kgf

Product Line

Onyx BMX 100/20mm Thru-bolt Front Hub

  • Please enter a number from 100 to 999.
  • This field is for validation purposes and should be left unchanged.

Although we do our best to make sure these spoke length values are correct, it is always best to measure the hub and verify these values for yourself!  Onyx Racing takes no responsibility for errors in these calculations.

Spoke length results for an ERD of 0 mm
28 Spoke HolesNon-Drive Side
(mm)
Drive Side
(mm)
1-Cross 00
2-Cross 00
3-Cross 00
4-Cross 00
32 Spoke HolesNon-Drive Side
(mm)
Drive Side
(mm)
1-Cross 00
2-Cross 00
3-Cross 00
4-Cross 00
36 Spoke HolesNon-Drive Side
(mm)
Drive Side
(mm)
1-Cross 00
2-Cross 00
3-Cross 00
4-Cross 00

Parts for Onyx BMX 100/20mm Thru-bolt Front Hub

ImageNameQty PerSKUPrice

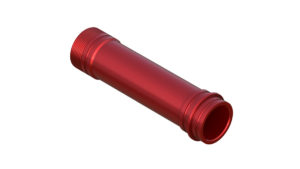

Onyx Axle, Front - BMX 100-20mm Thru 040974 Onyx Logo in Red
Axle, Front - BMX 100-20mm Thru1040974-logo$20.00
Onyx Bearing, Ceramic Hybrid - 6805 - 25 x 37 x 7 038495
Bearing, Ceramic Hybrid - 6805 - 25 x 37 x 72038495$42.00
BMX Thru-bolt Kit, 20mm
BMX Thru-bolt Kit, 20mm091453$45.00
Onyx Bolt, SOC HD 3mm x 8mm, Stainless Steel 042557
Bolt, SOC HD 3mm x 8mm, Stainless Steel1042557$0.25
Onyx Nut, Locking - 25mm 041016 in Red
Nut Kit, Locking - 25mm1091045$20.00
Onyx O-Ring, 23 mm x 1 mm 039513
O-Ring, 23 mm x 1 mm3039513$0.25
Onyx Ring, Seal 041796 in Red
Ring, Seal1041796$20.00
