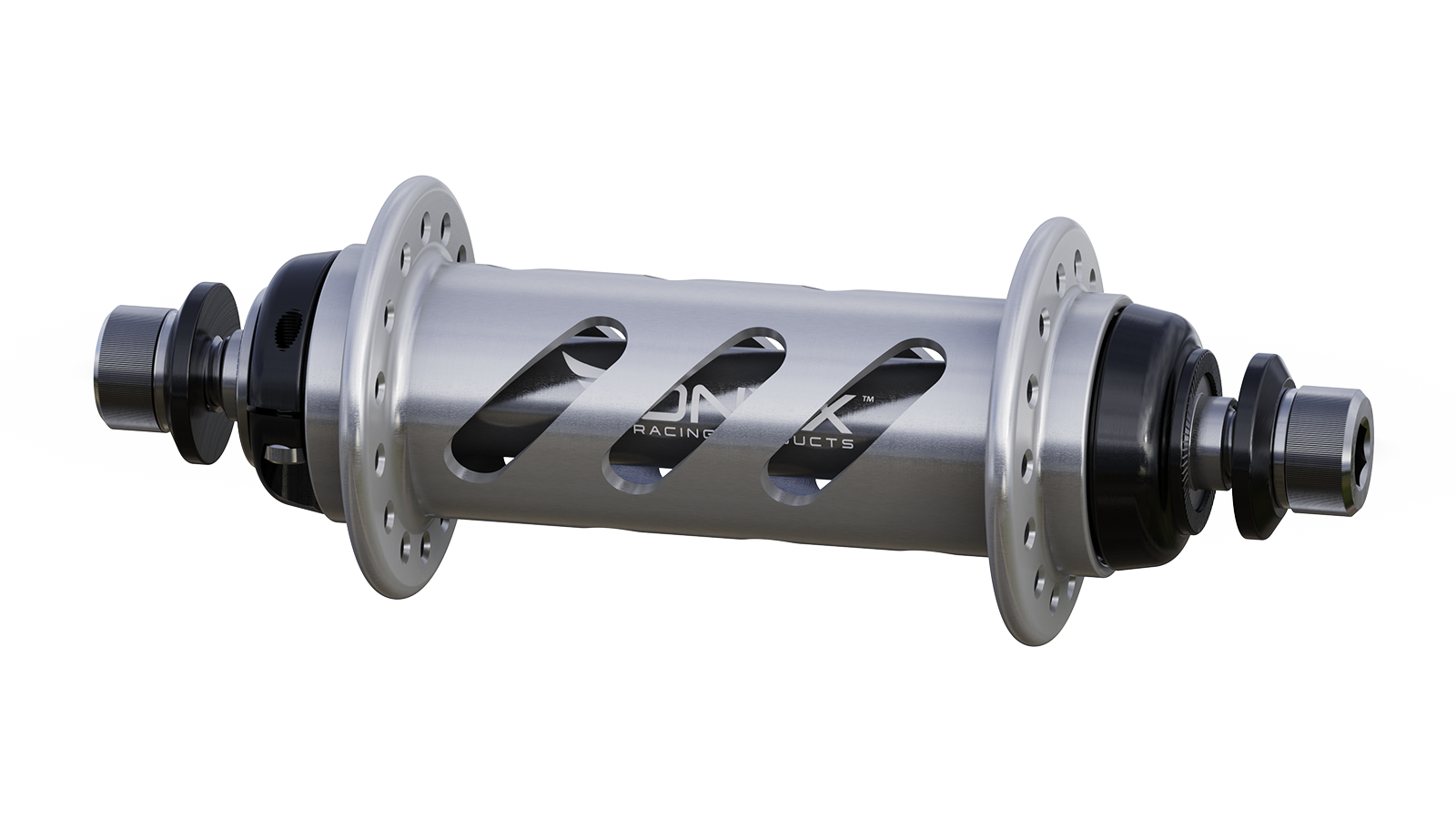

Onyx BMX OHM 100/8mm Bolt-on Helix Front Hub

Bolt-on BMX hubs are designed to work in conjunction with Chain tensioner(s) and have a MAX bolt torque of 15 Nm. Only the 28 spoke count hubshell is available in multiple anodized colors.

SKU: 099048-Helix Categories: , ,

Description and Drawings

SKU: 099048-Helix
SKU: 099048-Helix
A - Hub Center To Flange Center, Non-Drive Side (mm) 33.84
B - Hub Center To Flange Center, Drive Side (mm) 33.84
C - Axle Width (mm) 100
Spoke Hole Circle Diameter, Drive Side (mm) 33.81
Spoke Hole Circle Diameter, Non-Drive Side (mm) 33.81
Spoke Hole Counts Available 24/28

Specs

Weight (Steel) 5.1 oz / 145 g
Dimensions - Approximate for Shipping 9.5 × 4.5 × 4 in
Hub Type

Axle Width - mm

Axle Diameter - mm

Spoke Count

,

Attach Style

Hub Shell Style

Hub Shell Flange Type

Bolts

Spoke Tension - Max kgf

Product Line

Onyx BMX OHM 100/8mm Bolt-on Helix Front Hub

  • Please enter a number from 100 to 999.
  • This field is for validation purposes and should be left unchanged.

Although we do our best to make sure these spoke length values are correct, it is always best to measure the hub and verify these values for yourself!  Onyx Racing takes no responsibility for errors in these calculations.

Spoke length results for an ERD of 0 mm
24 Spoke HolesNon-Drive Side
(mm)
Drive Side
(mm)
1-Cross 00
2-Cross 00
3-Cross 00
4-Cross 00
28 Spoke HolesNon-Drive Side
(mm)
Drive Side
(mm)
1-Cross 00
2-Cross 00
3-Cross 00
4-Cross 00

Parts for Onyx BMX OHM 100/8mm Bolt-on Helix Front Hub

ImageNameQty PerSKUPrice
Axle Assembly, Front - BMX 100-8mm Bolt
Axle Assembly, Front - BMX 100-8mm Bolt1103259-logo$20.00
Onyx Bearing, Standard - 15267 - 15 x 26 x 7 099036
Bearing, Standard - 15267 - 15 x 26 x 72099036 Original price was: $7.50.Current price is: $5.10.
Bolt, SOC HD 8mm x 1.25pitch x 35mm, Stainless Steel
Bolt, SOC HD 8mm x 1.25pitch x 35mm, Stainless Steel2084064 Original price was: $7.50.Current price is: $5.10.
Bolt, SOC HD, Low-Profile, 3mm x 0.5pitch x 8mm, Stainless Steel
Bolt, SOC HD, Low-Profile, 3mm x 0.5pitch x 8mm, Stainless Steel1106437 Original price was: $0.50.Current price is: $0.34.
Nut Kit, Locking, 15mm
Nut Kit, Locking, 15mm1104690$20.00
Spacer, BMX, Axle - Front
Spacer, BMX, Axle - Front1104671$20.00
Spacer, Knurled
Spacer, Knurled1083577 Original price was: $10.00.Current price is: $6.80.
Onyx Washer, Flat 8mm 099046 in Black
Washer, Flat 8mm2099046$5.00

Optional Components or Upgrades

ImageNameQty PerSKUPrice
Onyx Bearing, Standard - 15267 - 15 x 26 x 7 099036
Bearing, CERAMIC - 15267 - 15 x 26 x 72099213 Original price was: $22.00.Current price is: $14.96.
Onyx Bolt, SOC HD 8mm x 35mm, Titanium 084165
Bolt, SOC HD 8mm x 1.25pitch x 35mm, Titanium2084165 Original price was: $15.00.Current price is: $10.20.

Discontinued Parts

ImageNameQty PerSKU
Onyx Axle, Front - BMX OHM 100-8mm Bolt 099050 Onyx Logo in Black
Axle, Front - BMX OHM 100-8mm Bolt [Discontinued]1099050-logo
Onyx Endcap, Knurled, 8mm Thru 100706 in Black
Endcap, Knurled, 8mm Thru [Discontinued]2100706
