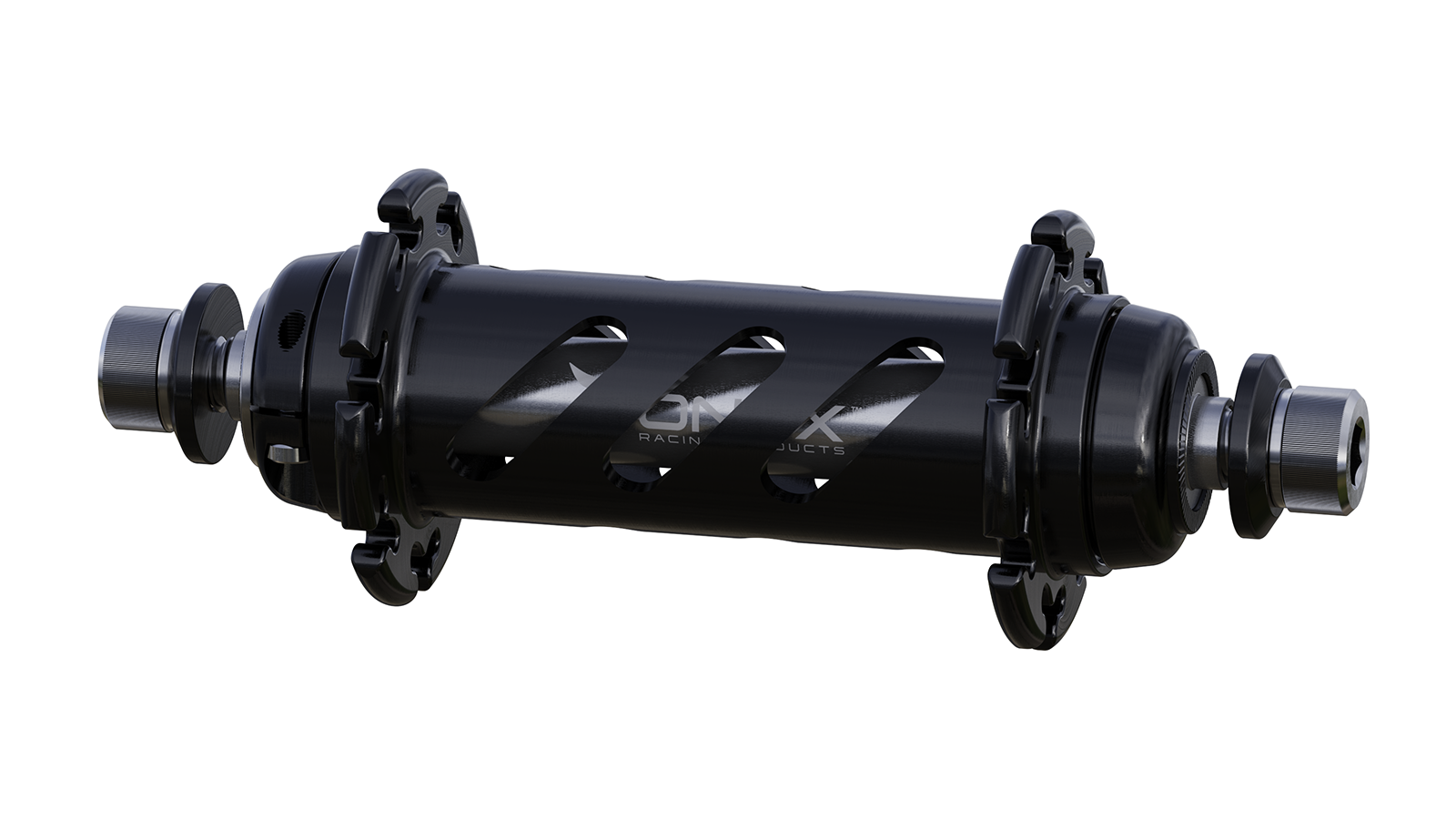

Onyx BMX OHM HOOK 100/8mm Bolt-on Helix Front Hub

Bolt-on BMX hubs are designed to work in conjunction with Chain tensioner(s) and have a MAX bolt torque of 15 Nm.

SKU: 104390-Helix Categories: , ,

Description and Drawings

SKU: 104390-Helix
SKU: 104390-Helix
A - Hub Center To Flange Center, Non-Drive Side (mm) 34.14
B - Hub Center To Flange Center, Drive Side (mm) 34.14
C - Axle Width (mm) 100
Spoke Hole Circle Diameter, Drive Side (mm) 35.31
Spoke Hole Circle Diameter, Non-Drive Side (mm) 35.31
Spoke Hole Counts Available 28

Specs

Weight (Steel) 5.1 oz / 145 g
Dimensions - Approximate for Shipping 9.5 × 4.5 × 4 in
Hub Type

Axle Width - mm

Spoke Count

Attach Style

Hub Shell Style

Bolts

Spoke Tension - Max kgf

Product Line

Onyx BMX OHM HOOK 100/8mm Bolt-on Helix Front Hub

  • Please enter a number from 100 to 999.
  • This field is for validation purposes and should be left unchanged.

Although we do our best to make sure these spoke length values are correct, it is always best to measure the hub and verify these values for yourself!  Onyx Racing takes no responsibility for errors in these calculations.

Spoke length results for an ERD of 0 mm
28 Spoke HolesNon-Drive Side
(mm)
Drive Side
(mm)
1-Cross 00
2-Cross 00
3-Cross 00
4-Cross 00

Parts for Onyx BMX OHM HOOK 100/8mm Bolt-on Helix Front Hub

ImageNameQty PerSKUPrice
Axle Assembly, Front - BMX 100-8mm Bolt
Axle Assembly, Front - BMX 100-8mm Bolt1103259-logo$20.00
Onyx Bearing, Standard - 15267 - 15 x 26 x 7 099036
Bearing, Standard - 15267 - 15 x 26 x 72099036$7.50
Bolt, SOC HD 8mm x 1.25pitch x 35mm, Stainless Steel
Bolt, SOC HD 8mm x 1.25pitch x 35mm, Stainless Steel2084064$15.00
Bolt, SOC HD, Low-Profile, 3mm x 0.5pitch x 8mm, Stainless Steel
Bolt, SOC HD, Low-Profile, 3mm x 0.5pitch x 8mm, Stainless Steel1106437$0.50
Nut Kit, Locking, 15mm
Nut Kit, Locking, 15mm1104690$20.00
Spacer, BMX, Axle - Front
Spacer, BMX, Axle - Front1104671$20.00
Spacer, Knurled
Spacer, Knurled1083577$10.00

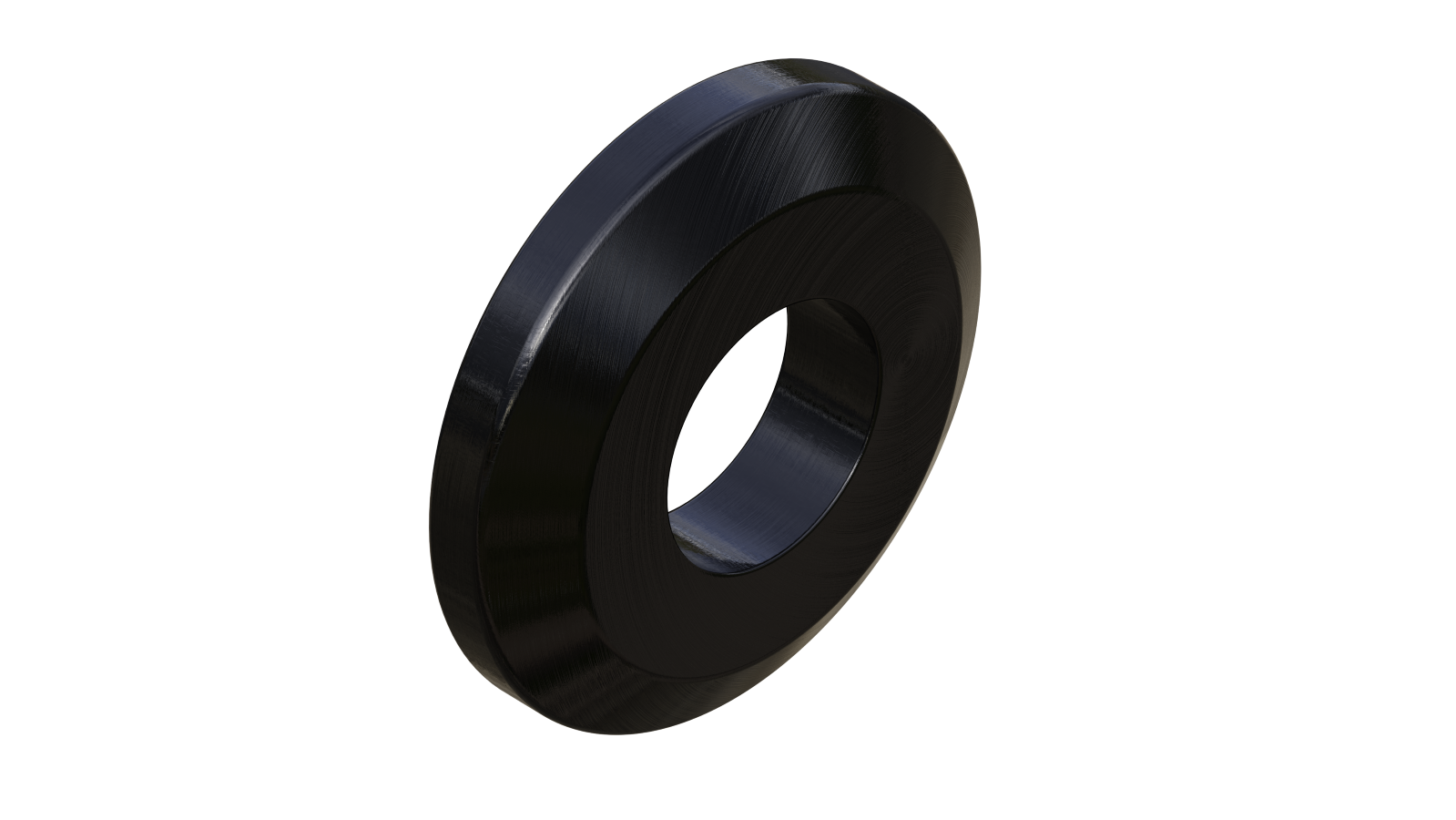

Onyx Washer, Flat 8mm 099046 in Black
Washer, Flat 8mm2099046$5.00
