Onyx BMX OHM HG-110/10mm Bolt-on Rear Hub

Bolt-on BMX hubs are designed to work in conjunction with Chain tensioner(s) and have a MAX bolt torque of 15 Nm. Only the 28 spoke count hubshell is available in multiple anodized colors.

SKU: 098769 Categories: ,

Description and Drawings

SKU: 098769
SKU: 098769

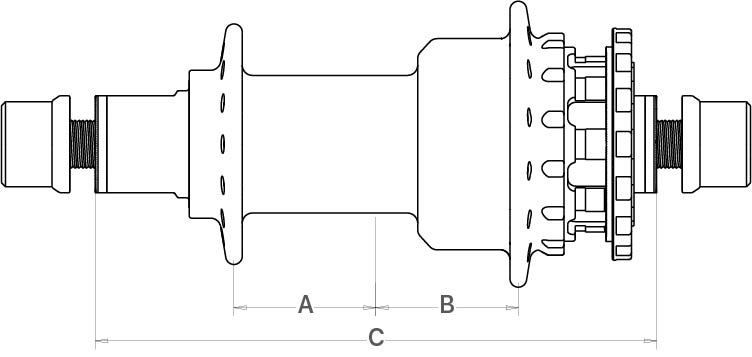

A - Hub Center To Flange Center, Non-Drive Side (mm) 27.87
B - Hub Center To Flange Center, Drive Side (mm) 27.87
C - Axle Width (mm) 110
Spoke Hole Circle Diameter, Drive Side (mm) 47
Spoke Hole Circle Diameter, Non-Drive Side (mm) 37
Spoke Hole Counts Available 24/28

Specs

Weight (Steel) 11.3 oz / 320 g
Dimensions - Approximate for Shipping 9.5 × 4.5 × 4 in
Hub Type

Axle Width - mm

Axle Diameter - mm

Spoke Count

,

Attach Style

Hub Shell Style

Hub Shell Flange Type

Bolts

Driver Style

Spoke Tension - Max kgf

Product Line

Onyx BMX OHM HG-110/10mm Bolt-on Rear Hub

  • Please enter a number from 100 to 999.
  • This field is for validation purposes and should be left unchanged.

Although we do our best to make sure these spoke length values are correct, it is always best to measure the hub and verify these values for yourself!  Onyx Racing takes no responsibility for errors in these calculations.

Spoke length results for an ERD of 0 mm
24 Spoke HolesNon-Drive Side
(mm)
Drive Side
(mm)
1-Cross 00
2-Cross 00
3-Cross 00
4-Cross 00
28 Spoke HolesNon-Drive Side
(mm)
Drive Side
(mm)
1-Cross 00
2-Cross 00
3-Cross 00
4-Cross 00

Parts for Onyx BMX OHM HG-110/10mm Bolt-on Rear Hub

ImageNameQty PerSKUPrice
Axle Assembly, Rear - BMX OHM - 100-10mm Bolt
Axle Assembly, Rear - BMX OHM - 100-10mm Bolt1105226$20.00
Onyx Bearing, Standard - 15267 - 15 x 26 x 7 099036
Bearing, Standard - 15267 - 15 x 26 x 71099036 Original price was: $7.50.Current price is: $5.63.
Onyx Bearing, Standard - 6804 - 20 x 32 x 7 099060
Bearing, Standard - 6804 - 20 x 32 x 71099060 Original price was: $9.00.Current price is: $6.75.
Onyx Bearing, Standard - 6805 - 25 x 37 x 7 099061
Bearing, Standard - 6805 - 25 x 37 x 71099061 Original price was: $11.00.Current price is: $8.25.
Onyx Bolt, SOC HD 10mm x 1.5pitch x 40mm, Stainless Steel 083123
Bolt, SOC HD 10mm x 1.5pitch x 40mm, Stainless Steel2083123$10.00
Onyx Driver Kit, BMX OHM HG - Alloy 100381
Driver Kit, BMX OHM HG - Alloy1100381$100.00
O-Ring, 14.5mm x 1mm
O-Ring, 14.5mm x 1mm1099959$0.25
Preload Endcap Assembly - BMX OHM - 12mm Thru
Preload Endcap Assembly - BMX OHM - 12mm Thru1103701$20.00
Onyx Retaining Ring, Internal 1.25dia - Stainless Steel 085300
Retaining Ring, Internal 1.25dia - Stainless Steel1085300$1.00
Onyx Ring, Locking - 1.37 x 24 thread per inch 038104 in Red
Ring, Locking - 1.37 x 24 thread per inch1038104$15.00
Sprag Clutch, 24
Sprag Clutch, 241104759$80.00

Optional Components or Upgrades

ImageNameQty PerSKUPrice
Onyx Bearing, Standard - 15267 - 15 x 26 x 7 099036
Bearing, CERAMIC - 15267 - 15 x 26 x 72099213 Original price was: $22.00.Current price is: $16.50.
Onyx Bearing, Ceramic Hybrid - 6804 - 20 x 32 x 7 038297
Bearing, Ceramic Hybrid - 6804 - 20 x 32 x 71038297 Original price was: $32.00.Current price is: $24.00.
Onyx Bearing, Ceramic Hybrid - 6805 - 25 x 37 x 7 038495
Bearing, Ceramic Hybrid - 6805 - 25 x 37 x 71038495 Original price was: $42.00.Current price is: $31.50.
Onyx Bolt, SOC HD 10mm x 1.5pitch x 40mm, Titanium 084166
Bolt, SOC HD 10mm x 1.5pitch x 40mm, Titanium2084166$20.00
Cog Spacer Pack, HG & HGSS - 18.9mm
Cog Spacer Pack, HG & HGSS - 18.9mm109597$30.00
Cog Spacer Pack, HG & HGSS - 7.3mm
Cog Spacer Pack, HG & HGSS - 7.3mm086351$15.00
COG, HG and HGSS - Anodized Aluminum
COG, HG and HGSS - Anodized Aluminum$35.00
COG, HG and HGSS - Stainless Steel
COG, HG and HGSS - Stainless Steel$50.00

Discontinued Parts

ImageNameQty PerSKU
Onyx Axle, Rear - BMX OHM 110-10mm Bolt 099038
Axle, Rear - BMX OHM 110-10mm Bolt [Discontinued]1099038
Onyx Endcap, Knurled - Left, 10mm Thru 100377 in Black
Endcap, Knurled - Left, 10mm Thru [Discontinued]1100377
Onyx Endcap, Knurled - Right, HG 10mm Thru 100379 in Black
Endcap, Knurled - Right, HG 10mm Thru [Discontinued]1100379
Onyx O-Ring, Square - 1.0000 od x 0.88 id x .06 wide 099042
O-Ring, Square - 1.0000 od x 0.88 id x .06 wide [Discontinued]1099042
