Description and Drawings

A - Hub Center To Flange Center, Non-Drive Side (mm)	38.13
B - Hub Center To Flange Center, Drive Side (mm)	38.13
C - Axle Width (mm)	100
Spoke Hole Circle Diameter, Drive Side (mm)	50.51
Spoke Hole Circle Diameter, Non-Drive Side (mm)	50.51
Spoke Hole Counts Available	28/32/36

Specs

Weight	8.4 oz / 238 g
Dimensions - Approximate for Shipping	9.5 × 4.5 × 4 in
Hub Type	Front
Axle Width - mm	100
Axle Diameter - mm	10, 14, 20
Spoke Count	28, 32, 36
Attach Style	10mm Bolt-on (stainless steel bolts), 10mm Bolt-on (titanium bolts), 14mm Threaded (peg compatible), 20mm Thru-bolt
Hub Shell Style	Grooved
Hub Shell Flange Type	J-Bend
Spoke Tension - Max kgf	120
Product Line	Classic

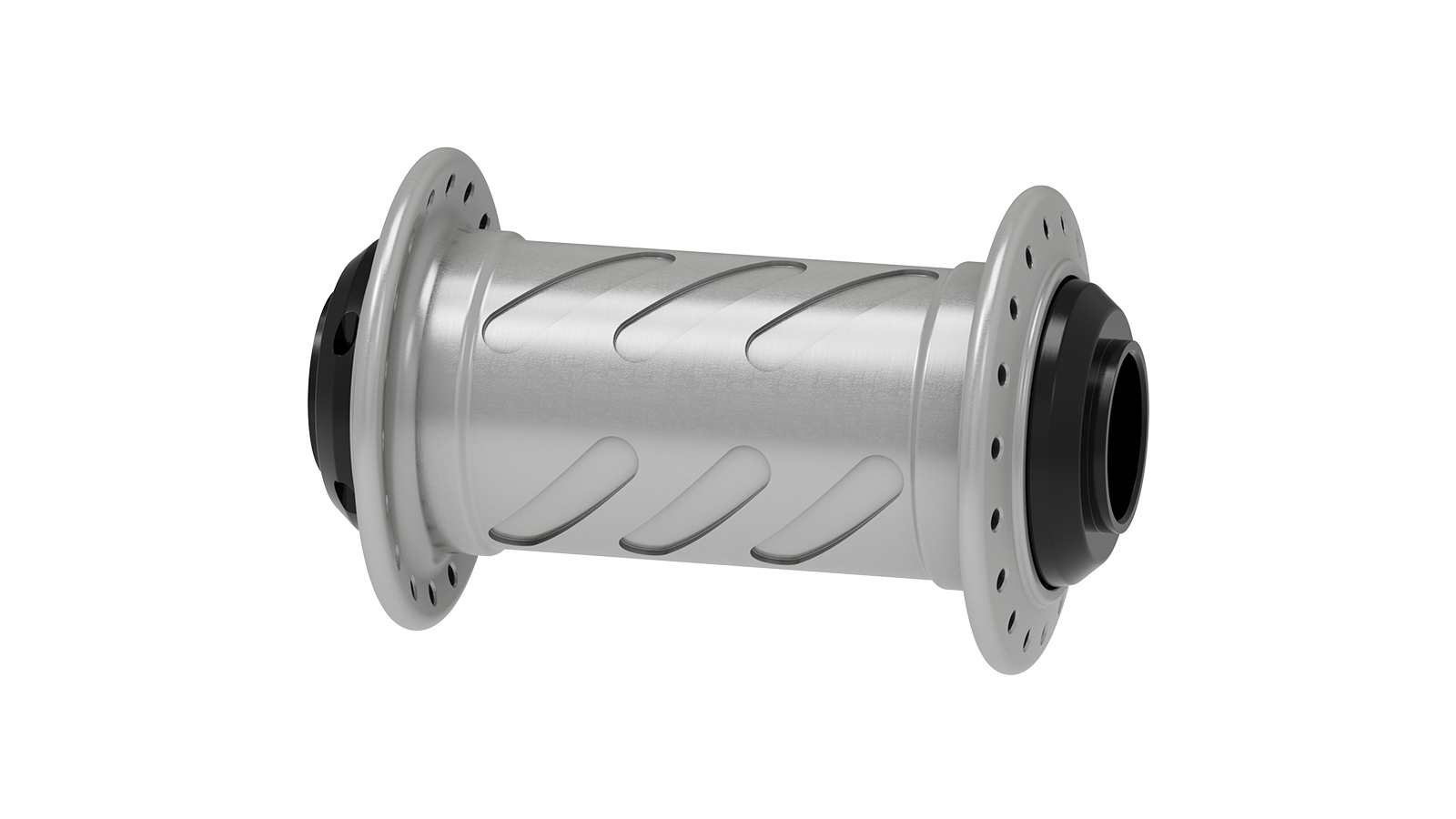

Name: Onyx BMX XL 100 Grooved Front Hub
SKU: 126556-Grooved
Availability: InStock

28 Spoke Holes	Non-Drive Side (mm)	Drive Side (mm)
Although we do our best to ensure these values are correct, always verify by measurement. Onyx Racing takes no responsibility for errors.
Results for an ERD of 0 mm
1-Cross	0	0
2-Cross	0	0
3-Cross	0	0
4-Cross	0	0
32 Spoke Holes	Non-Drive Side (mm)	Drive Side (mm)
1-Cross	0	0
2-Cross	0	0
3-Cross	0	0
4-Cross	0	0
36 Spoke Holes	Non-Drive Side (mm)	Drive Side (mm)
1-Cross	0	0
2-Cross	0	0
3-Cross	0	0
4-Cross	0	0
