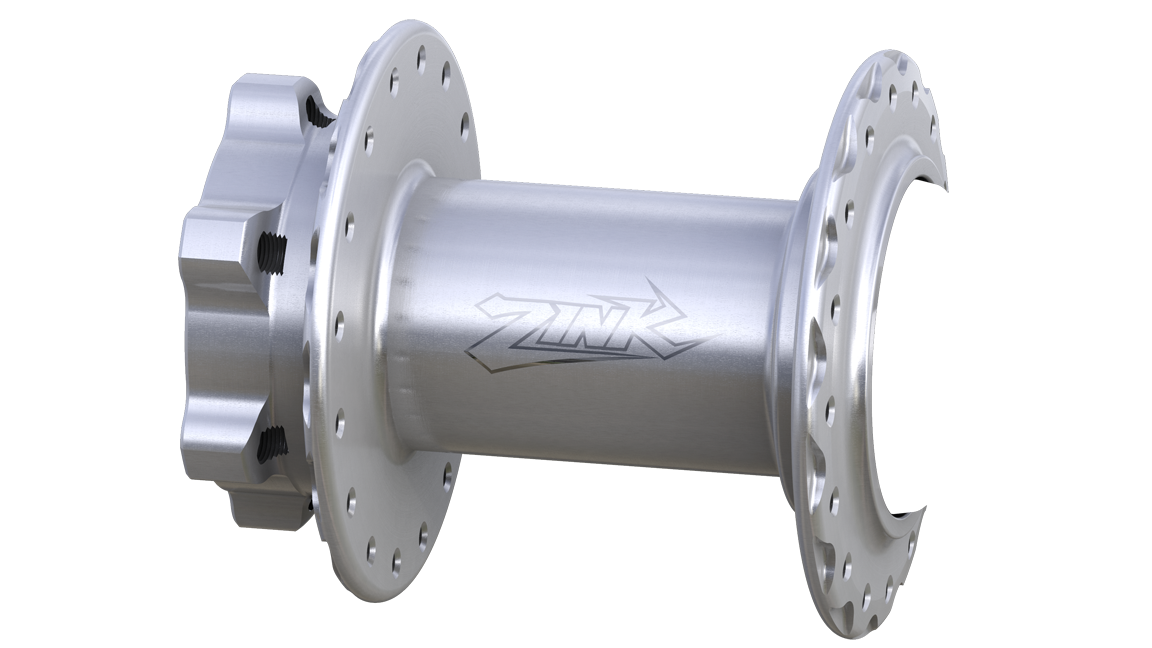

![Onyx MTB Cam Zink Special ISO-100/15mm Thru-bolt Front Hub [Discontinued]](https://onyxrp.com/wp-content/uploads/Onyx-MTB-Cam-Zink-Front-Hub-ISO-Disc-100mm-axle-15mm-thru-094870-ano-cr-ano-cr_base.png)
| A - Hub Center To Flange Center, Non-Drive Side (mm) | 21 |
|---|---|
| B - Hub Center To Flange Center, Drive Side (mm) | 34.3 |
| C - Axle Width (mm) | 100 |
| Spoke Hole Circle Diameter, Drive Side (mm) | 57 |
| Spoke Hole Circle Diameter, Non-Drive Side (mm) | 57 |
| Spoke Hole Counts Available | 32 |
| Weight | 6.7 oz / 190 g |
|---|---|
| Dimensions - Approximate for Shipping | 9.5 × 4.5 × 4 in |
| Hub Type | |
| Axle Width - mm | |
| Attach Style | |
| Hub Shell Style | |
| Hub Shell Flange Type | |
| Disc Brake Rotor Mount | |
| Spoke Tension - Max kgf | |
| Product Line |
| Although we do our best to ensure these values are correct, always verify by measurement. Onyx Racing takes no responsibility for errors. | ||
| Results for an ERD of 0 mm | ||
| 32 Spoke Holes | Non-Drive Side (mm) | Drive Side (mm) |
|---|---|---|
| 1-Cross | 0 | 0 |
| 2-Cross | 0 | 0 |
| 3-Cross | 0 | 0 |
| 4-Cross | 0 | 0 |
| Image | Name | Qty Per | SKU | Price |
|---|---|---|---|---|
 | Axle, Front - MTB ISO 100 | 1 | 042766-logo | $30.00 |
 | Bearing, Sealed - 6805 - 25 x 37 x 7 | 2 | 111162 | $15.00 |
 | Bolt, SOC HD 3mm x 8mm, Stainless Steel | 1 | 042557 | $0.25 |
 | Nut Kit, Locking - 25mm | 1 | 091045 | $20.00 |
 | O-Ring, 23 mm x 1 mm | 2 | 039513 | $0.25 |
