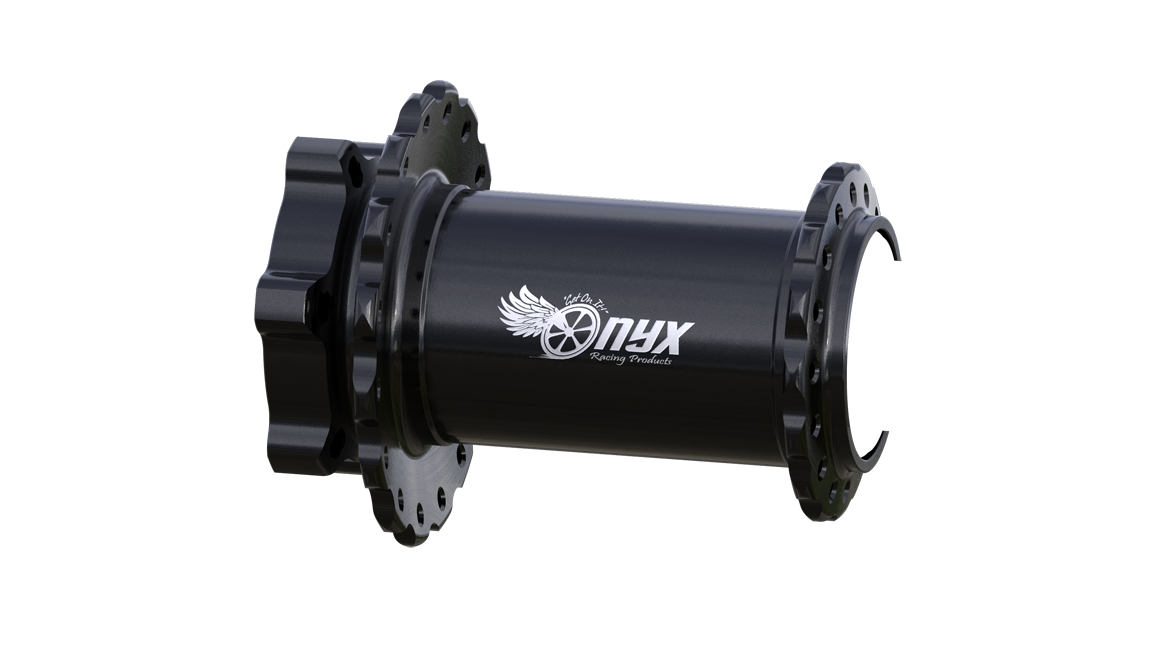

Onyx Vesper MTB ISO 110/20 Thru-bolt Front Hub

SKU: 102645 Category:

Description and Drawings

SKU: 102645
SKU: 102645
A - Hub Center To Flange Center, Non-Drive Side (mm) 21.8
B - Hub Center To Flange Center, Drive Side (mm) 37.4
C - Axle Width (mm) 110
Spoke Hole Circle Diameter, Drive Side (mm) 42.0
Spoke Hole Circle Diameter, Non-Drive Side (mm) 57.0
Spoke Hole Counts Available 24/28/32

Specs

Weight 6.0 oz / 170 g
Dimensions - Approximate for Shipping 9.5 × 4.5 × 4 in
Hub Type

Axle Width - mm

Axle Diameter - mm

Spoke Count

, ,

Attach Style

Hub Shell Style

Hub Shell Flange Type

Disc Brake Rotor Mount

Spoke Tension - Max kgf

Product Line

Onyx Vesper MTB ISO 110/20 Thru-bolt Front Hub

  • Please enter a number from 100 to 999.
  • This field is for validation purposes and should be left unchanged.

Although we do our best to make sure these spoke length values are correct, it is always best to measure the hub and verify these values for yourself!  Onyx Racing takes no responsibility for errors in these calculations.

Spoke length results for an ERD of 0 mm
24 Spoke HolesNon-Drive Side
(mm)
Drive Side
(mm)
1-Cross 00
2-Cross 00
3-Cross 00
4-Cross 00
28 Spoke HolesNon-Drive Side
(mm)
Drive Side
(mm)
1-Cross 00
2-Cross 00
3-Cross 00
4-Cross 00
32 Spoke HolesNon-Drive Side
(mm)
Drive Side
(mm)
1-Cross 00
2-Cross 00
3-Cross 00
4-Cross 00

Parts for Onyx Vesper MTB ISO 110/20 Thru-bolt Front Hub

ImageNameQty PerSKUPrice
Onyx Bearing, Standard - 6804 - 20 x 32 x 7 099060
Bearing, Standard - 6804 - 20 x 32 x 72099060 Original price was: $9.00.Current price is: $6.75.
Endcap, Front - Left, 110-20mm
Endcap, Front - Left, 110-20mm1103298$20.00
Endcap, Front - Right, 110-20mm
Endcap, Front - Right, 110-20mm1103299$20.00
Onyx O-Ring, 23 mm x 2 mm 084425
O-Ring, 23 mm x 2 mm1084425$0.25
O-Ring, 28mm x 2mm
O-Ring, 28mm x 2mm1095019$0.25
Spacer, Internal
Spacer, Internal1099010$10.00
