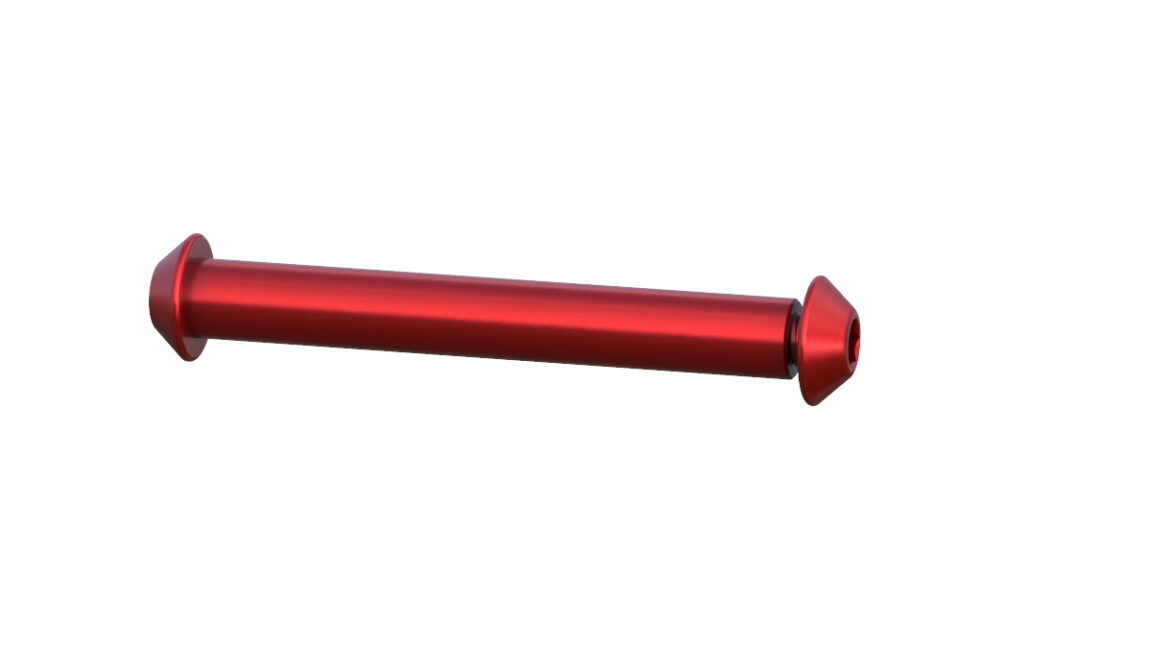

Measuring for BMX Thru-axle Length
A= Width of Fork/Frame Dropout | B= Width of Hub | C= Width of Fork/Frame Dropout |
---|---|---|
**Measure all lengths with spacers, chain tensioners, adaptors in place* |
||
Add A + B + C to get overall length of axle required. |
||
Thru axles are compatible with forks within +/- 1 mm of listed length.
|
||
Due to the growing number of frame and fork manufacturers and changing standards, Onyx Racing Products is not responsible for the proper fitting of thru axles to a given frame or fork model. |
A - Hub Center To Flange Center, Non-Drive Side (mm) | |
---|---|
B - Hub Center To Flange Center, Drive Side (mm) | C - Axle Width (mm) |
Spoke Hole Circle Diameter, Drive Side (mm) | |
Spoke Hole Circle Diameter, Non-Drive Side (mm) | |
Spoke Hole Counts Available | |
