Description and Drawings

Drawing coming soon.

A - Hub Center To Flange Center, Non-Drive Side (mm)	34.6
B - Hub Center To Flange Center, Drive Side (mm)	16.97
C - Axle Width (mm)	130
Spoke Hole Circle Diameter, Drive Side (mm)	50.0
Spoke Hole Circle Diameter, Non-Drive Side (mm)	38.0
Spoke Hole Counts Available	24/28/32

Specs

Weight	13.7 oz / 388 g
Dimensions - Approximate for Shipping	9.5 × 4.5 × 4 in
Hub Type	Rear
Axle Width - mm	130
Spoke Count	24, 28, 32
Attach Style	Quick Release
Hub Shell Style	Solid
Hub Shell Flange Type	J-Bend
Driver Style	Campagnolo Campy® N3W
Spoke Tension - Max kgf	120
Product Line	Vesper

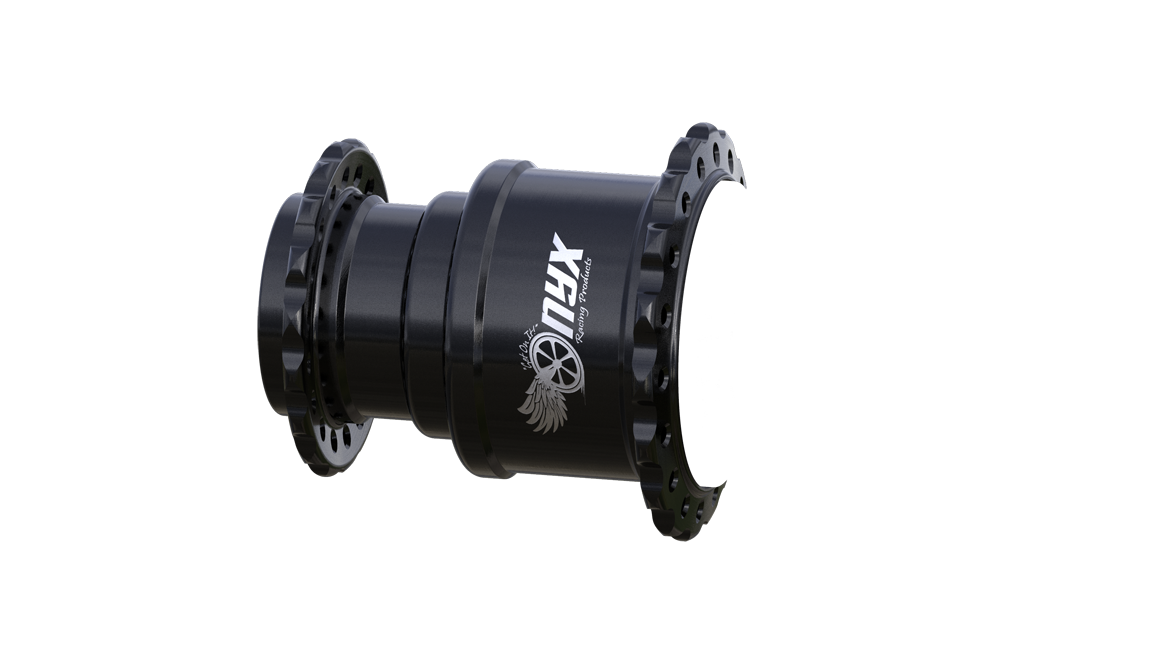

Name: Onyx Vesper ROAD CAMPY-N3W 130/QR Rear Hub
SKU: 102763
Availability: InStock

24 Spoke Holes	Non-Drive Side (mm)	Drive Side (mm)
Although we do our best to ensure these values are correct, always verify by measurement. Onyx Racing takes no responsibility for errors.
Results for an ERD of 0 mm
1-Cross	0	0
2-Cross	0	0
3-Cross	0	0
4-Cross	0	0
28 Spoke Holes	Non-Drive Side (mm)	Drive Side (mm)
1-Cross	0	0
2-Cross	0	0
3-Cross	0	0
4-Cross	0	0
32 Spoke Holes	Non-Drive Side (mm)	Drive Side (mm)
1-Cross	0	0
2-Cross	0	0
3-Cross	0	0
4-Cross	0	0

Image	Name	Qty Per	SKU	Price
